UPS A.HV
PANEL SAW WITH SLIDING TABLE
WATCH PRODUCT VIDEO
PRODUCT INFORMATION DESCRIBED BELOW ↓
HIGH PERFORMANCE CUTTING SOLUTION
INDUSTRIAL HEAVY DUTY SOLUTION FOR FURNITURE FACTORY
UMABOY specifically built this PANALE SAW Machine to conduct woodcutting with precision and attention to quality. This may work well for cutting solid wood. MDF board, laminated board, plywood, and particle board.

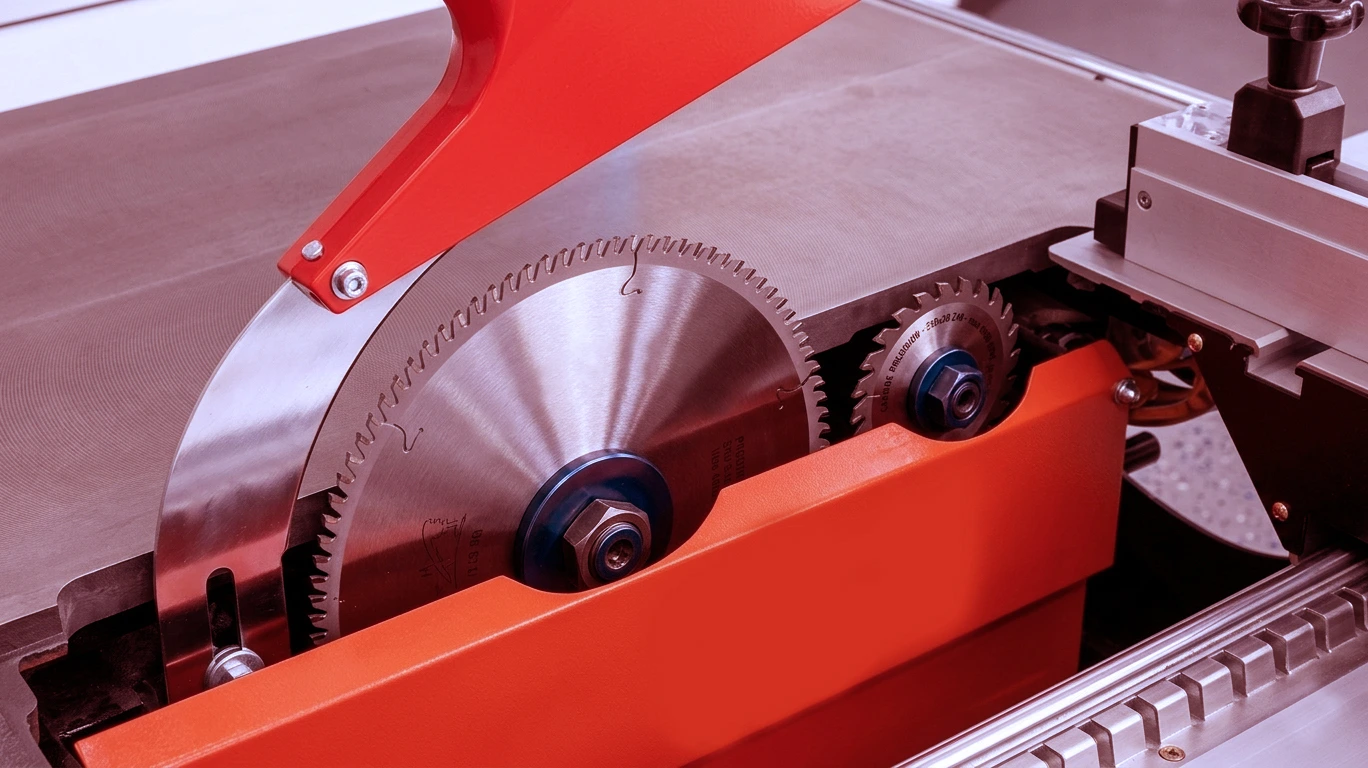

SAW UNIT
- For easy operation, smooth running with precise measurement cutting
- Machining of head is done by VMC with 5 microne preciosion.
- The system leads to vibration and noise free operation.
- Perfectly balanced housing.

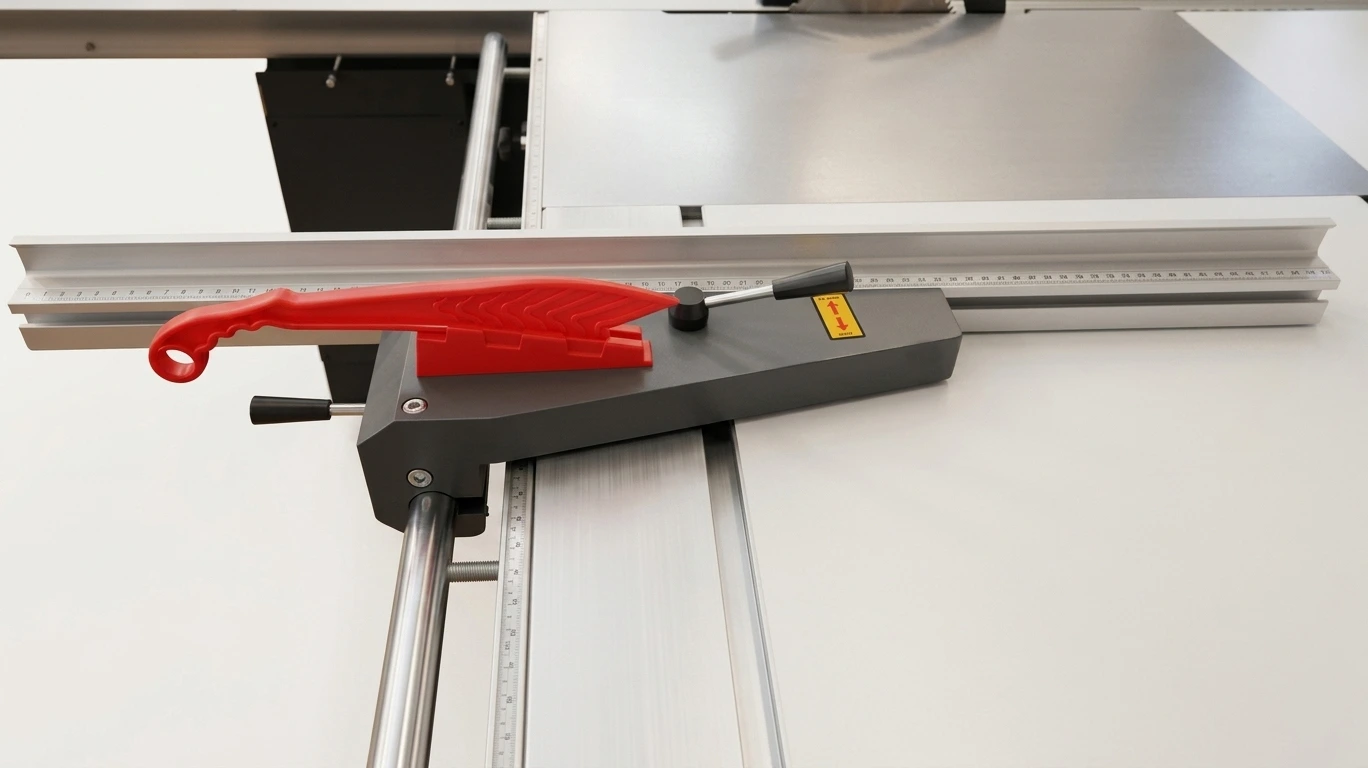

THE RIP FENSE
- For easy operation, smooth running with precise measurement cutting.
- Manual rip fence adjustment with cutting capacity upto 1220mm.
ANGLE FENCE
- Accurate angle adjustments, efficient operation and calibration are all made possible by the precise angle meter
- Helping to cut any type of custom size angle.

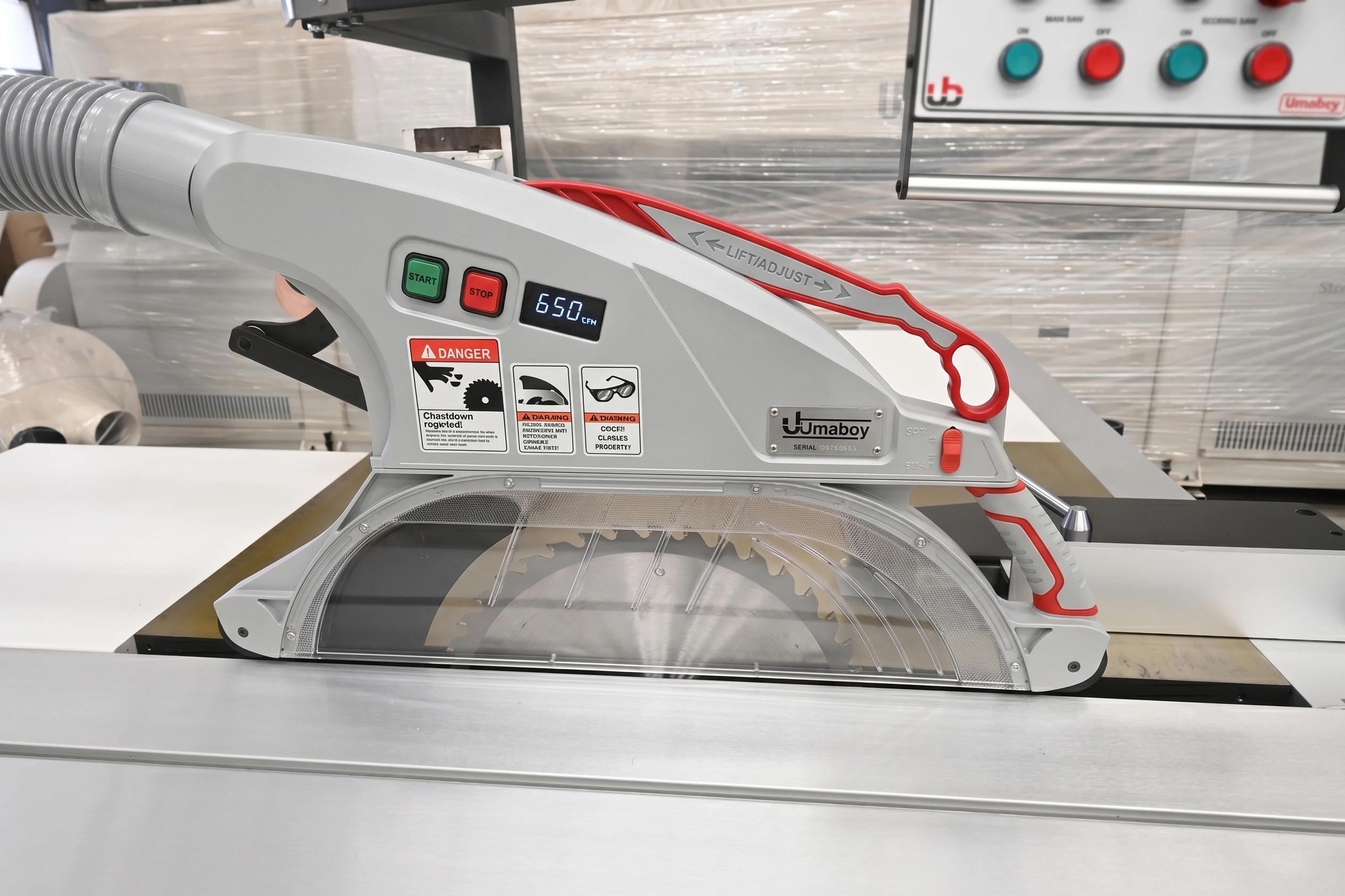

DUST COLLECTION HOOD
- Dust collection device has effective suction to accumulate all particle.
TECHNICAL SPECIFICATION

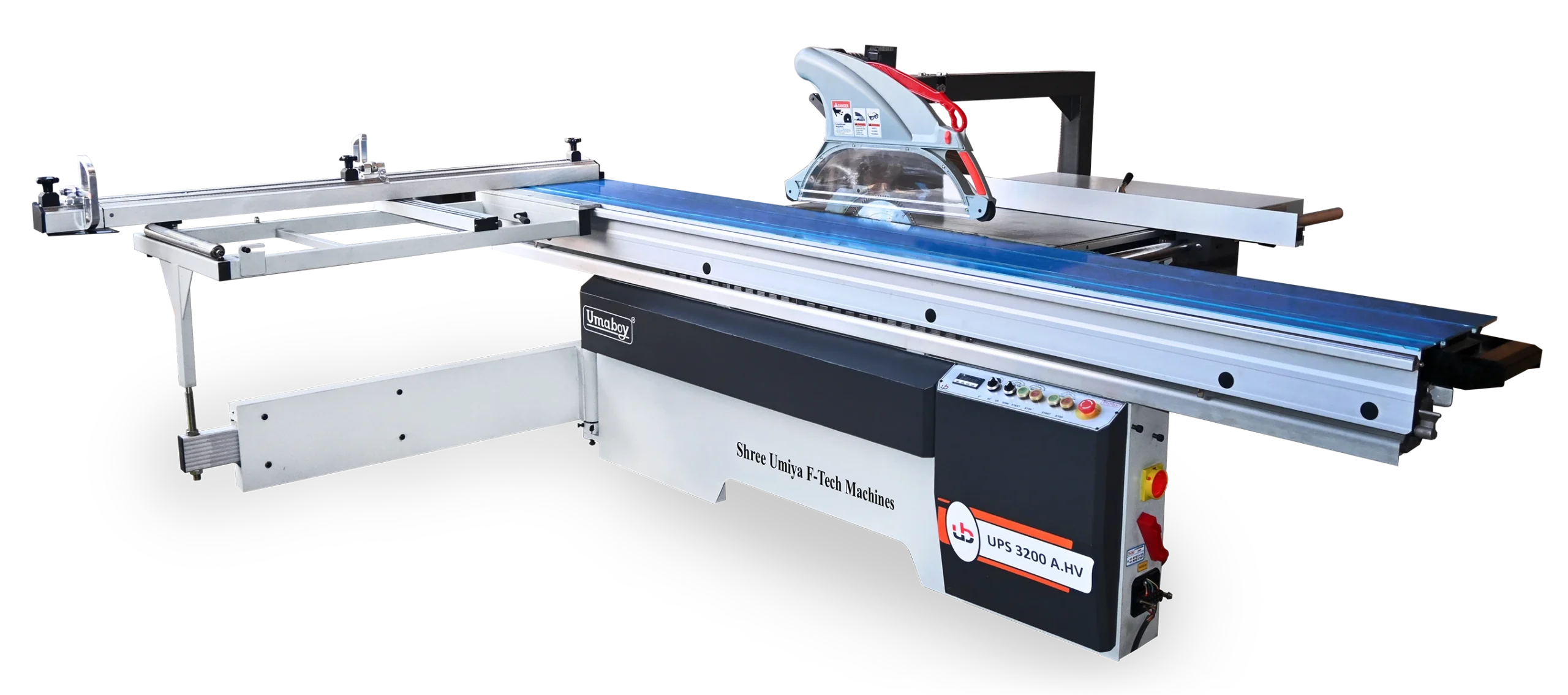

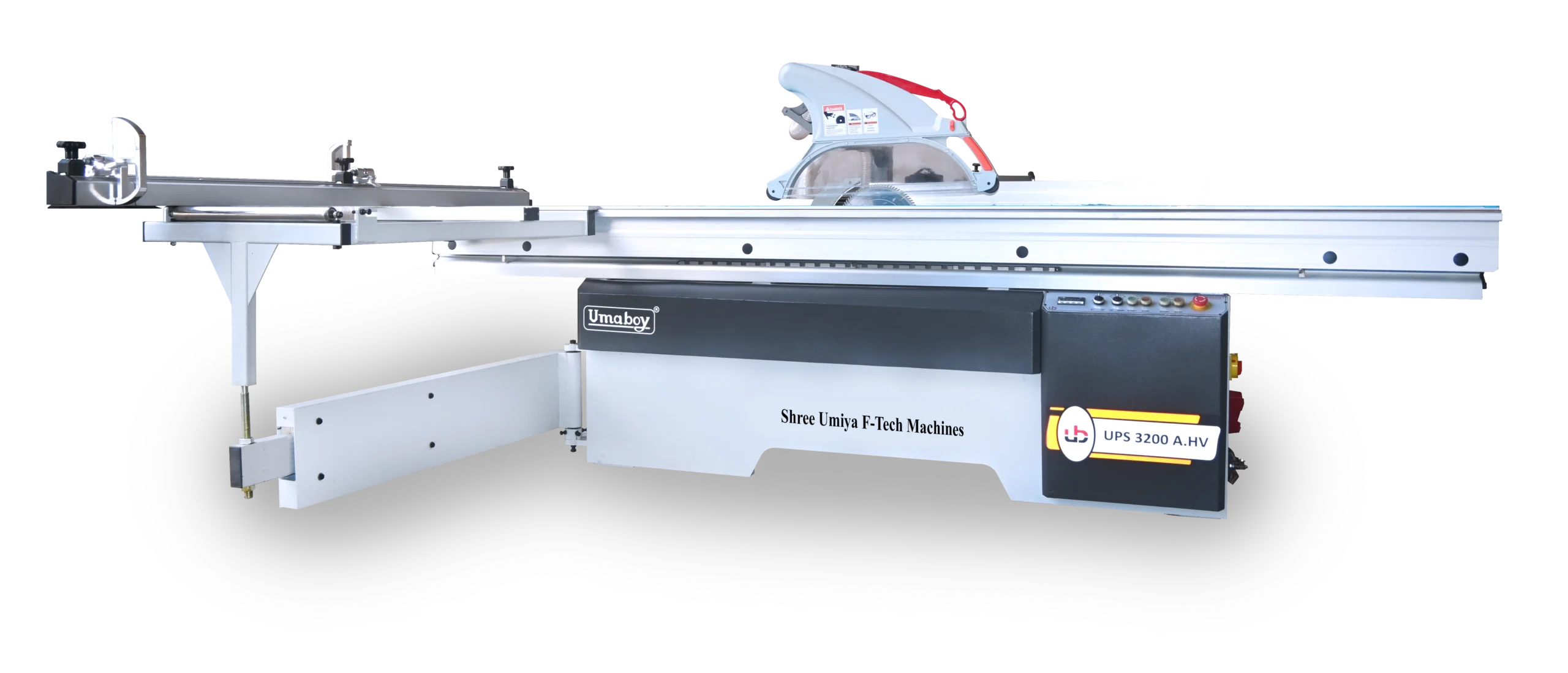

Panel Saw UPS 3200A.HV
This panel saw machine is specifically built to conduct woodcutting with precision and attention to quality.
Technical Specification
| Model | UPS 3200A.HV |
|---|---|
| Dimension of sliding table | 3200 x 415 mm |
| Gross cut capacity | 3200 mm |
| Width of cut between saw blade and rip fence | 1220 mm |
| Saw blade diameter | 400 m (250-400) |
| Height of cut | 100 mm |
| Speed of main saw spindle | 4000/6000 rpm |
| Spindle diameter | 30 mm |
| Tilting saw blade | 0-45° |
| Main motor | 5.5 kw |
| Scoring saw blade diameter | 120 mm |
| Speed of scoring saw blade | 8000r/min |
| Scoring spindle diameter | 20 mm |
| Scoring motor | 0.75kw |
| Overall dimensions | 3860 x 3400 x 1400 mm |
| Rip fence movement | Manual |
| 45° Tilt | Manual ( Readout Digital ) |
| Main saw up and down | Auto |
| Scoring saw up and down | Auto |
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Let's talk !
Please fill out this form and relax.
Our expert executive team will reach out to you and
offer the most suitable advice according to your needs.
Please contact we would like to help you.​
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Related to Products you've viewed
Explore Our Most Selling Machines
Edge Bander
Panel Saw
Hydraulic Coldpress
Multi Boring
Urex CNC Router

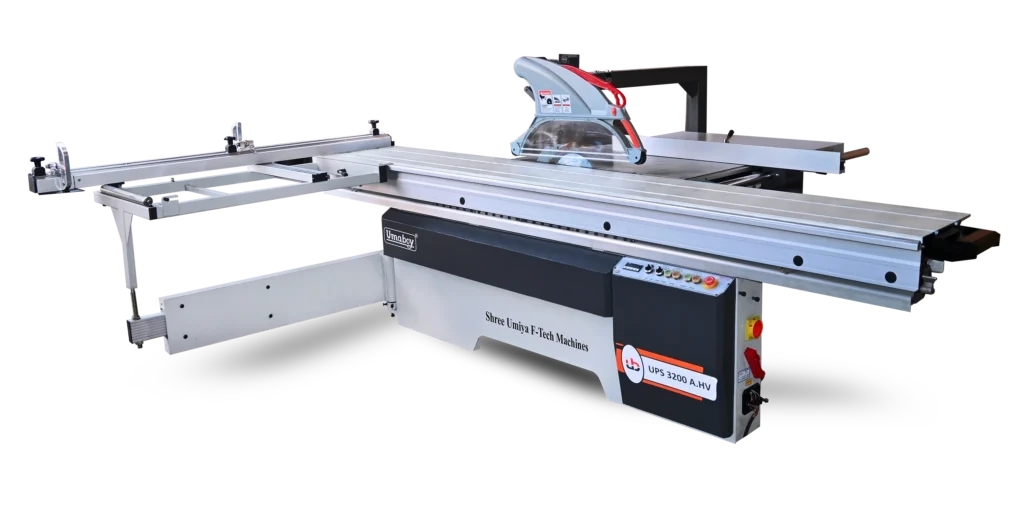

About Panel Saw 3200A.HV Machine
Exploring the Ultra precision Panel Saw 3200A.HV
The UMABOY Panel Saw 3200A.HV is engineered for superior performance in woodcutting applications. It features a heavy-duty structure for stability and durability, ensuring consistent, high-quality cuts. The inclusion of digital readouts enhances precision by providing accurate measurements and settings. Additionally, the large safety cover offers enhanced protection during operation, contributing to a safer working environment. These combined features make the 3200A.HV an excellent choice for achieving exceptional precision and quality in demanding woodcutting Industry.
The Panel Saw 3200A.HV machine features and advancements
- Precision Cutting: The Panel Saw 3200A.HV is equipped with heavy-duty motors that provide the power necessary for achieving precise cutting. These high-powered motors enable the saw to handle challenging materials and complex cuts with exceptional accuracy, ensuring that each cut meets the exact specifications required. The robust motor performance contributes to both the efficiency and precision of the cutting process, making the 3200A.HV a reliable choice for demanding woodworking tasks.
- Digital Readout :Â The Panel Saw 3200A.HV is equipped with digital readouts that simplify operation and ensure accuracy throughout the cutting process. These digital displays provide clear, real-time measurements and settings, making it easier to achieve precise cuts and adjustments. This feature enhances user control and consistency, streamlining the workflow and improving overall efficiency in woodcutting tasks.
- Wide Safety Guard:Â The Panel Saw 3200A.HV features a wide safety guard that significantly enhances operational safety. This comprehensive guard helps protect operators from potential accidents by covering the blade and reducing the risk of contact with moving parts. Its design ensures that safety is prioritized during machine use, making the cutting process both safer and more secure.
- Specially Designed to Large Scale Production: The Panel Saw 3200A.HV is specially designed for large-scale production, making it ideal for high-volume woodworking tasks. Its robust construction, powerful motors, and advanced features such as digital readouts and wide safety guards are tailored to handle demanding production environments efficiently. This design ensures durability, precision, and consistency, enabling you to meet the high demands of large-scale projects with ease.
Frequently Asked Questions ?
What Types of Panel Saw Machines Does Umaboy Manufacturing, Supply and export ?
UMABOY is a leading Panel Saw 3200A.HV Manufacturer and Supplier, offering a range of panel saw machines designed to meet diverse woodcutting needs. Their products are trusted by Panel Saw 3200A.HV suppliers in India for their precision and durability
What Are the Unique eatures of Umaboy's Panel Saw 3200A.HV Machines?
The Panel Saw 3200A.HV stands out for its high-precision cutting, powerful motors, and advanced safety features, making it a top choice for those looking to buy the Panel Saw 3200A.HV.
How Umaboy Provide service & support after sales Panel Saw 3200A.HV?
Umaboy is committed to delivering excellent service and support after sales Panel Saw 3200A.HV. Their support system includes:
Customer Support Team: They offer a dedicated customer service team available via phone, email, or live chat to address any issues or queries you might have.
Technical Assistance: Umaboy provides technical support for troubleshooting and resolving any operational problems with their machinery. This can include on-site visits if necessary.
Warranty and Repairs: They offer a comprehensive warranty for their products, which covers repairs and replacements as needed.
Maintenance Services: Regular maintenance services and inspections are available to ensure that machinery remains in optimal condition.
Training and Resources: They provide training resources and manuals to help users understand and maximize the functionality of their machinery.
Parts Availability: Umaboy ensures that replacement parts are readily available and can be ordered through their service channels.
Overall, Umaboy aims to ensure that their customers receive timely and effective support to maintain their machinery's performance and longevity. UMABOY offers comprehensive after-sales service and support, ensuring that the Panel Saw 3200A.HV operates efficiently and meets all user expectations. As a reputable Wholesale Panel Saw 3200A.HV Supplier, they are committed to customer satisfaction
How Does Umaboy Ensure the Quality and Durability of Its Panel Saw 3200A.HV Machines?
Umaboy ensures the quality and durability of its panel saw machines through the use of high-quality materials and precision engineering. Each machine undergoes rigorous testing and adheres to advanced manufacturing techniques. The company maintains strict quality control at every production stage. Continuous improvement and adherence to industry standards further guarantee reliability and performance. UMABOY ensures the quality and durability of the Panel Saw 3200A.HV through rigorous testing and the use of premium materials, making them a leading Industrial Panel Saw 3200A.HV Manufacturer.
What makes Umaboy's 3200A.HV panel saws stand out in terms of quality, performance, and durability?
Umaboy's 3200A.HV panel saws stand out due to their exceptional quality, performance, and durability. They are crafted using high-grade materials and precision engineering to ensure long-lasting reliability. Each saw undergoes rigorous testing and adheres to advanced manufacturing techniques, maintaining top performance under heavy use. Continuous design improvements and strict quality control further enhance their durability and effectiveness, making Umaboy a trusted choice for high-quality panel saws. The Panel Saw 3200A.HV is distinguished by its precision, durability, and advanced features, making it an excellent investment for those looking to buy the Panel Saw 3200A.HV from a trusted supplier
