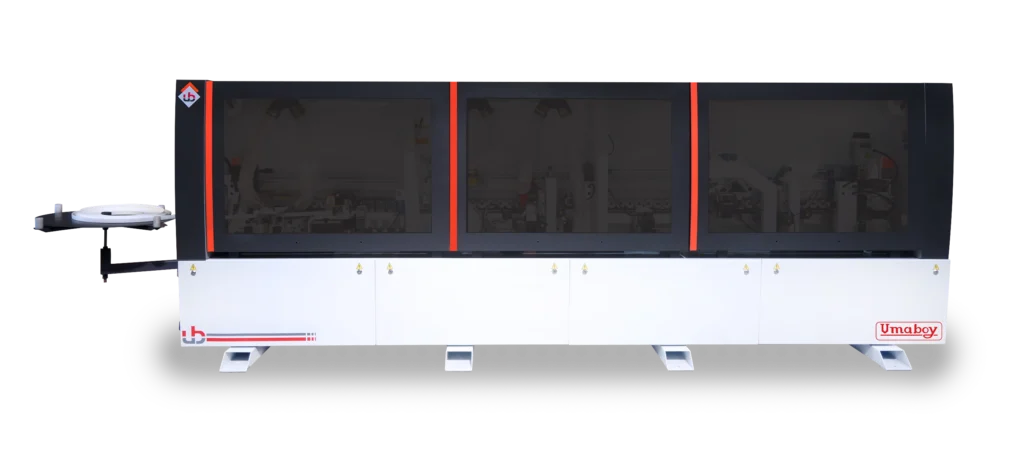

UEB 540 PC
AUTOMATIC EDGEBANDING MACHINE
WATCH PRODUCT VIDEO
PRODUCT INFORMATION DESCRIBED BELOW ↓
SEAMLESS EDGEBANDING MACHINE
SMART SOLUTION FOR ENHANCE QUALITY​
The machine can be performing with many different Edgebands such as PVC, ABS, veneer and acrylic On different types of boards such as plywood, chipboard, MDF/HDF..
PREMILLING UNIT
- An automatic length sensor switch is installed, which allows accurate determination of panel length and processing of the entire panel.
- corrects the panel’s surface using premium auto-set High RPM Spindle frequency motors revolves both counter-clockwise and clockwise to provide a precise, chip-free finish.
- Equipped with a 1.5 KW spindle motor-powered, 12000 RPM diamond cutter head.
- The maximum board thickness for premilling is 50 mm, and the maximum cutting depth is between 0.2 to 2 mm.
- There is a partition and an air blower installed between the Premilling Unit and the Glue Unit.Â
- The air blower removes dust particles for a quality and smoother gluing process.
- The priming procedure creates a consistent surface and chip-free edge for the panel.

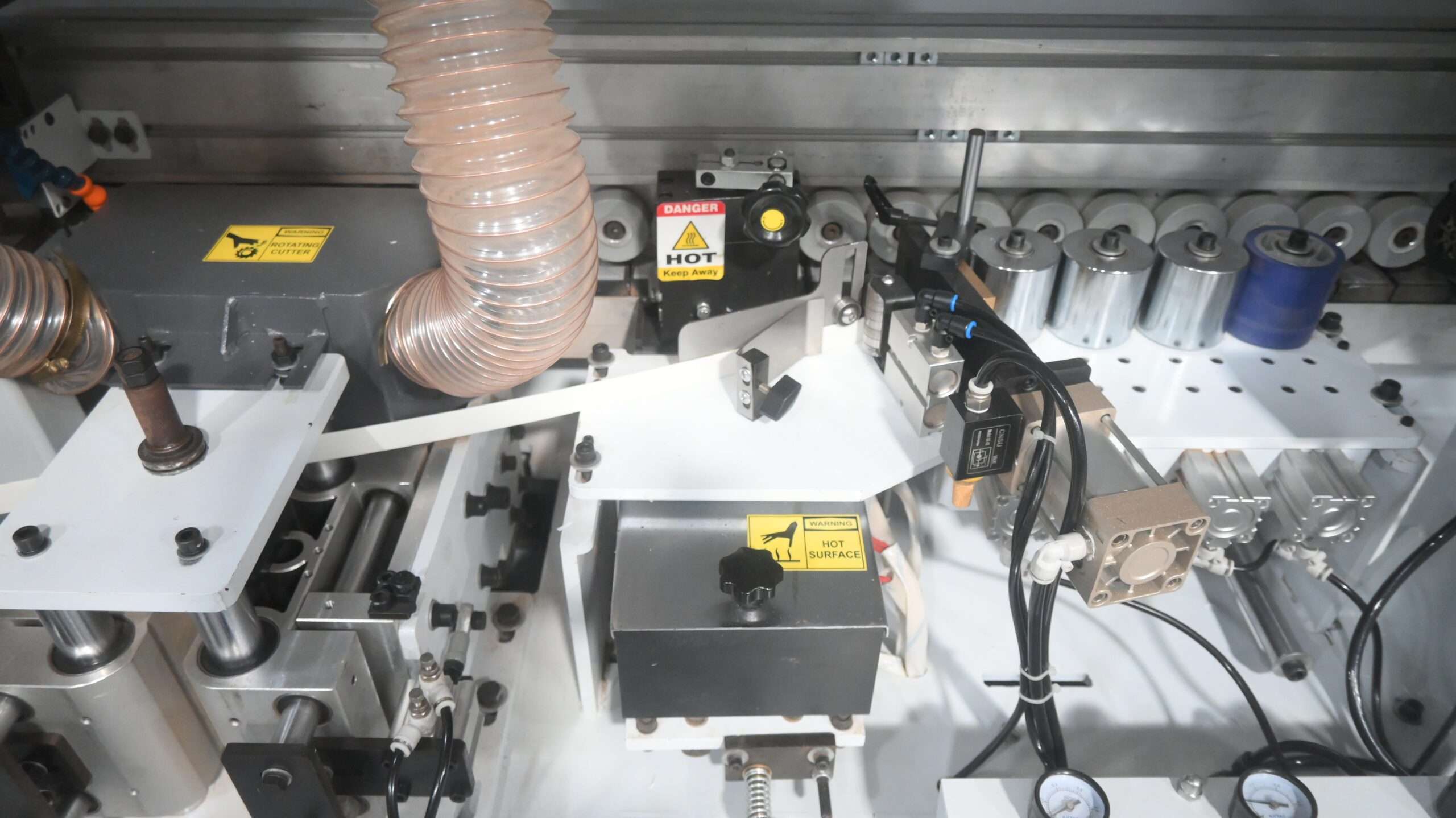

GLUE UNIT
- Apply the hot melt glue on the panel, Pneumatic cutting of pvc edge banding as per the length of panel, gluing on entire surface of panel height.
- Teflon coated gluepot to prevent wastage of glue. It works wonders for clearing away burnt glue. Gluepot with a 2 kilogram capacity and a 1.5 kw plate heating.
- Having a nurling roller with a 500 watt heating element ensures uniformity of glue on panel edge.
- The high quality superior wiper controlled the flow of glue.
- These features are specially designed to ensure a consistently precise finish and superior quality and to avoid any poor quality and Inconsistency of glue.
PRESSURE ROLLER GROUP
- A pressure roller group consists of 4 pressure rollers. The first pressure roller diameter is 150 mm and the remaining pressure roller diameters are 100 mm.
- all 4 pressure roller pneumatically operated. pressure can be adhustable by pnumatic pressure nobe. function of pneumatic cylinder operated by PLC
- The pressure rollers apply sufficient force to the panel to ensure that the glue adheres correctly and in the desired amount.
- It offers incredible results with a smooth finish and a long-lasting edge attached to the panel.
END CUTTING
- Unit used to cut excess pvc from both the end of panel. Equipped with high frequency motors with a power of 0.55 kW and 12,000 rpm and saw blades with a diameter of 150 mm.
- High reliability and precision as Installed large linear guides. 2 saw blades diam. 104 x 3.0 x 22 mm, T = 30.
- This process ensures a precise edge finish for a perfect finished look.
FINE TOP/BOTTOM TRIMMING
- Performs fine trimming of the top and bottom edges of the pvc edge.
- Comes with 2 highend frequency motors with suction hood and vertical Guide Plate.
- Motors manually tiltable between 2 working positions: Flat and radius trimming.
- Easy adjustments of trimming head as per thickness of pvc.
- High Frequency spindle motor – 0.55 kw x 2, 12000 RPM.
CORNER ROUNDING
- corner rounding unit for front and rear edges for perfect corner trimming.
- This unit works in different profile in prosessed post forming machine like half nose, full nose, and duck nose.
- having a capacity of 50 mm panel.
- High Frequency spindle motor – 0.55 kw x 2, 12000 RPM.
- Workpiece length min – 150 mm, edgebanding thickness upto 0.4 mm to 3mm.
- Thanks to it’s movement of circulating over the edge of panel with the help of linear guide ways and pneumatic cylinder gives the best result in the corner of panel.
PVC SCRAPPING UNIT
- PVC Scrapping to remove excess pvc from top and bottom edge.
- Comes with standard profile of 2 mm.
- It provides better edge, consistency, precision and smoothness..
- Includes 2 R-profile blades with suction hood and front and vertical guide plate..
LIQUID SPRAYING
- Spraying anti adhesive liquid on panel before buffing unit give the clean finished surface.
- Equipped with PLC controlled pneumatic flow.
- This process cleans the entire treated area to make it look rich and well-groomed..
BUFFING UNIT
- Edge banding machine buff wheels are used to polish and buff the edges of the top/bottom wood panels to create a smooth and glossy finish.
- Finishing the edge looks dimensional and attractive with this process.

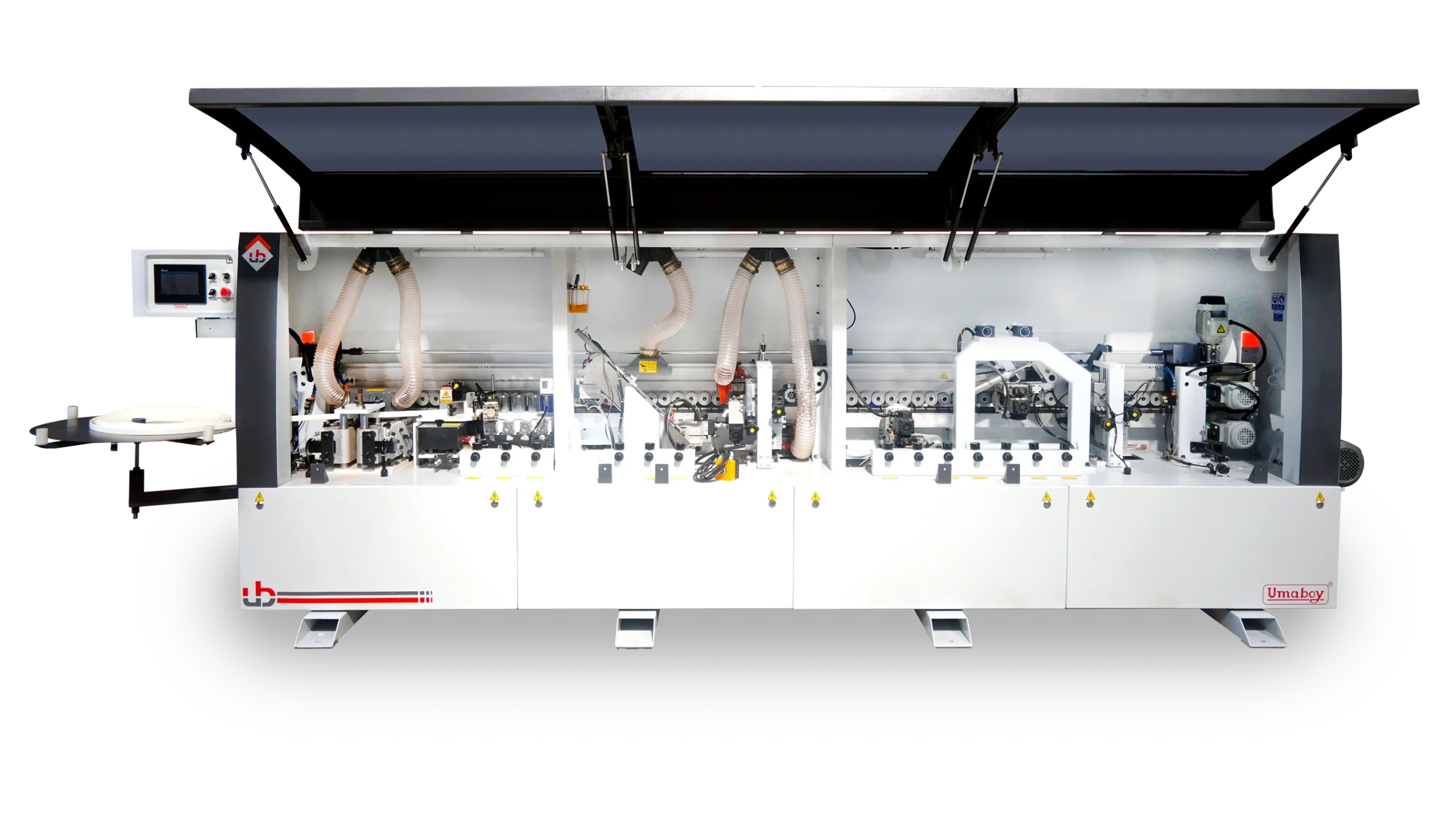

High Speed Auto Edge Bander UEB-540 PC
Heavy Duty Machine For Large Scale Production
- High end machining performance High speed processing with
user friendly and trouble free operation. - Motorised up-down of conveyor belt
- Smart Touch PLC System integrated with encoder controlled
every functions of the machines which gives accurate functioning - Equipped with Diamond pre milling Cutter
- Gluepot having a capacity of 2 KG of EVA glue
- Safety air tank for constant supply of air to machine
Technical Specifications
Model | UEB-540 PC |
---|---|
Electric Level | 415-220/50 hz |
Edge Material Thickness | 0.4-3 mm |
Panel Thickness | 10-50 mm |
Minimum Width of The Panel | 60 mm |
Maximum Leangth of The Panel | 130 mm |
Converyer Speed | 18 m/min |
Conveyer Thickness Adjustment | Electric |
Conveyer Up/Down | 0.37 kw |
Total Electric Power | 12 kw |
Total Air Pressure | 6-8 bars |
Pre-milling Motor Power | 2 x 1.5 kw |
End Cutting Unit Power | 2 x 0.55 kw |
Top/bottom Fine-triming Unit Power | 2 x 0.55 kw |
Corner Rounding Unit Power | 2 x 0.3 kw |
Buffing Unit Power | 2 x 0.37 kw |
Overall Size (L X H X W) | 6300 X 1650 X 1000 |
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Let's talk !
Please fill out this form and relax.
Our expert executive team will reach out to you and
offer the most suitable advice according to your needs.
Please contact we would like to help you.​
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Related to Products you've viewed
UEB 240 S
AUTOMATIC EDGEBANDING MACHINE
UEB 310 c
AUTOMATIC EDGEBANDING MACHINE
Explore Our Most Selling Machines
Edge Bander
Panel Saw
Hydraulic Coldpress
Multi Boring
Urex CNC Router
About Automatic Edge Banding Machine UEB-540 PC
Buy Automatic Edge Bander UEB-540 PC with Pre-milling Function
The UEB-540 PC is designed to offer enhanced accuracy and a chip-free panel finish during the edge banding process,
making it highly suitable for large-scale production.
The Development and Uses of Automatic Edgebanding Machine
Chip-Free Panel Technology: Ensures that panels are banded without chipping, providing a clean and smooth edge that enhances the overall quality and appearance of the finished product.
Precision Engineering: Advanced design and technology contribute to accurate edge banding, reducing errors and ensuring consistent results across high volumes of production.
Large-Scale Production Efficiency: Engineered to handle substantial production demands, the UEB-540 PC delivers reliable performance and high throughput, supporting large manufacturing operations with ease.
-
Features:
- Automated Application: These machines automatically apply edge bands to panels with high precision, reducing manual labor and ensuring consistent results.
- Adjustable Settings: Modern models allow for customizable edge banding thickness and adhesive application settings to handle various materials and edge profiles.
- Integrated Trimming: Built-in trimming tools cut excess edge banding for a flush, clean finish, minimizing additional processing steps.
- Digital Controls: Touchscreen interfaces and programmable settings enable easy operation and precise control over the banding process.
- High-Speed Operation: Designed for rapid processing, the High Speed Auto Edge Bander UEB-540 PC enhances production efficiency.
Advancements of Modern Edgebanding Machine UEB-540 PC.
Looking to enhance your woodworking efficiency? Buy Auto Edge Bander UEB-540 PC from the leading Manufacturer of Auto Edge Bander UEB-860 PC. As a trusted Auto Edge Bander Supplier in India, we provide high-speed, precise edge banding solutions. Modern edgebanding machines, including the Industrial Auto Edge Bander UEB-540 PC Machine Exporter, have seen significant advancements. They feature enhanced automation, precision digital controls, and touchscreen interfaces for exact adjustments and programming. With support for various edge materials and profiles, these innovations ensure stronger bonds, superior finishes, and improved efficiency across large production volumes.
Frequently Asked Questions ?
What Types of Automatic Edgebanding Machines Does Umaboy, the Manufacturer of Auto Edge Bander UEB-860 PC, Manufacture & Supply?
The Umaboy Automatic Edgebanding Machine, from a renowned Manufacturer of Auto Edge Bander UEB-860 PC, stands out for its robust construction, user-friendly interface, and advanced features such as precise digital control for feed speed and glue application. It is designed to deliver consistent, high-quality edge banding with minimal setup time, making it ideal for both small workshops and large-scale production facilities.
What Industries Can Benefit from Umaboy's Automatic Edgebanding Machines UEB-540 PC?
Umaboy’s automatic edgebanding machines UEB-540 PC are ideal for industries involved in furniture manufacturing, cabinetry, interior design, and custom woodworking. They are particularly beneficial for companies that require high-quality edge banding on materials such as MDF, particleboard, and plywood, commonly used in producing cabinets, office furniture, and home decor.
Is UMABOY available as an Auto Edge Bander Supplier in India for the UEB-540 PC machine?
Yes, UMABOY, a leading Auto Edge Bander Supplier in India, is available to supply their UEB-540 PC edgebanding machines across the country. They offer nationwide service, ensuring prompt delivery, installation, and support for customers throughout India.
How Does Umaboy Ensure the Quality and Durability of Its High Speed Auto Edge Bander UEB-310C?
Umaboy ensures the quality and durability of its edgebanding machines UEB-540 PC through rigorous testing and quality control processes during manufacturing. The machines are built with high-grade materials and components, designed to withstand heavy use in industrial environments. Each machine undergoes extensive performance testing to ensure it meets Umaboy’s strict standards for precision, reliability, and longevity.
What Makes the Umaboy UEB-540 PC Automatic Edgebanding Machine Different from Other Brands?
UMABOY is the only manufacturer of edgebanding machines UEB-540 PC in India, with over 40 years of experience that has forged a strong bond with the furniture industry, enabling them to handle any scenario and offer extensive customization.
