UEB 845

AUTOMATIC EDGEBANDING MACHINE

45 Degree Angle Edge Banding

DOWNLOAD PRODUCT INFO
WATCH PRODUCT VIDEO

PRODUCT INFORMATION DESCRIBED BELOW ↓

ADVANCED FEATURES

DESIGNED FOR ACCURACY. BUILT FOR PRODUCTIVITY

PRE HEATER

It allowing the hot-melt glue to stay liquid longer for deeper penetration.

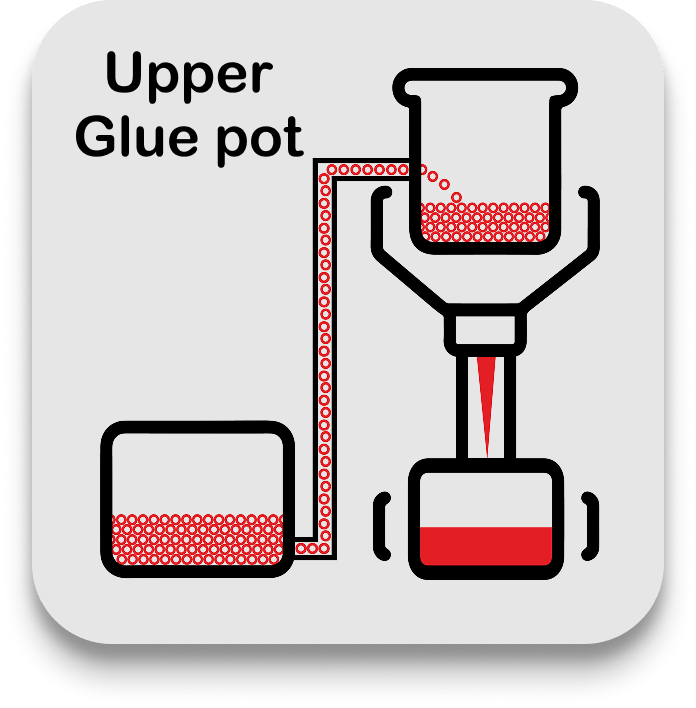

AUTO FEEDING GLUE

Universal Gluing deice with Rapid changeover and Temperature stability.

VERTICAL GROOVING UNIT

Precision Grooving unit with Digital Readout and integrated Extraction.

The machine can be performing with many different Edgebands such as PVC, ABS, veneer and acrylic On different types of boards such as plywood, chipboard, MDF/HDF..

45 DEGREE PRE MILLING UNIT

  • A pressure roller group consists of 3 pressure rollers. The first pressure roller diameter is 150 mm and the remaining pressure roller diameters are 100 mm.
  • all 3 pressure roller pneumatically operated. pressure can be adhustable by pnumatic pressure nobe. function of pneumatic cylinder operated by PLC
  • The pressure rollers apply sufficient force to the panel to ensure that the glue adheres correctly and in the desired amount.
  • It offers incredible results with a smooth finish and a long-lasting edge attached to the panel.

GLUE UNIT

  • Apply the hot melt glue on the panel, Pneumatic cutting of pvc edge banding as per the length of panel, gluing on entire surface of panel height.
  • Teflon coated gluepot to prevent wastage of glue. It works wonders for clearing away burnt glue. Gluepot with a 2 kilogram capacity and a 1.5 kw plate heating.
  • Having a nurling roller with a 500 watt heating element ensures uniformity of glue on panel edge.
  • The high quality superior wiper controlled the flow of glue.
  • These features are specially designed to ensure a consistently precise finish and superior quality and to avoid any poor quality and Inconsistency of glue.

PRESSURE ROLLER GROUP

  • A pressure roller group consists of 3 pressure rollers. The first pressure roller diameter is 150 mm and the remaining pressure roller diameters are 100 mm.
  • all 3 pressure roller pneumatically operated. pressure can be adhustable by pnumatic pressure nobe. function of pneumatic cylinder operated by PLC
  • The pressure rollers apply sufficient force to the panel to ensure that the glue adheres correctly and in the desired amount.
  • It offers incredible results with a smooth finish and a long-lasting edge attached to the panel.

FINE TOP/BOTTOM TRIMMING

  • Performs fine trimming of the top and bottom edges of the PVC edge.
  • Comes with 2 high-end frequency motors with suction hood and vertical guide plate.
  • Motors manually tiltable between 2 working positions: flat and radius trimming.
  • Easy adjustments of the trimming head as per the thickness of the PVC.
  • High-frequency spindle motor—0.75 kW x 2.

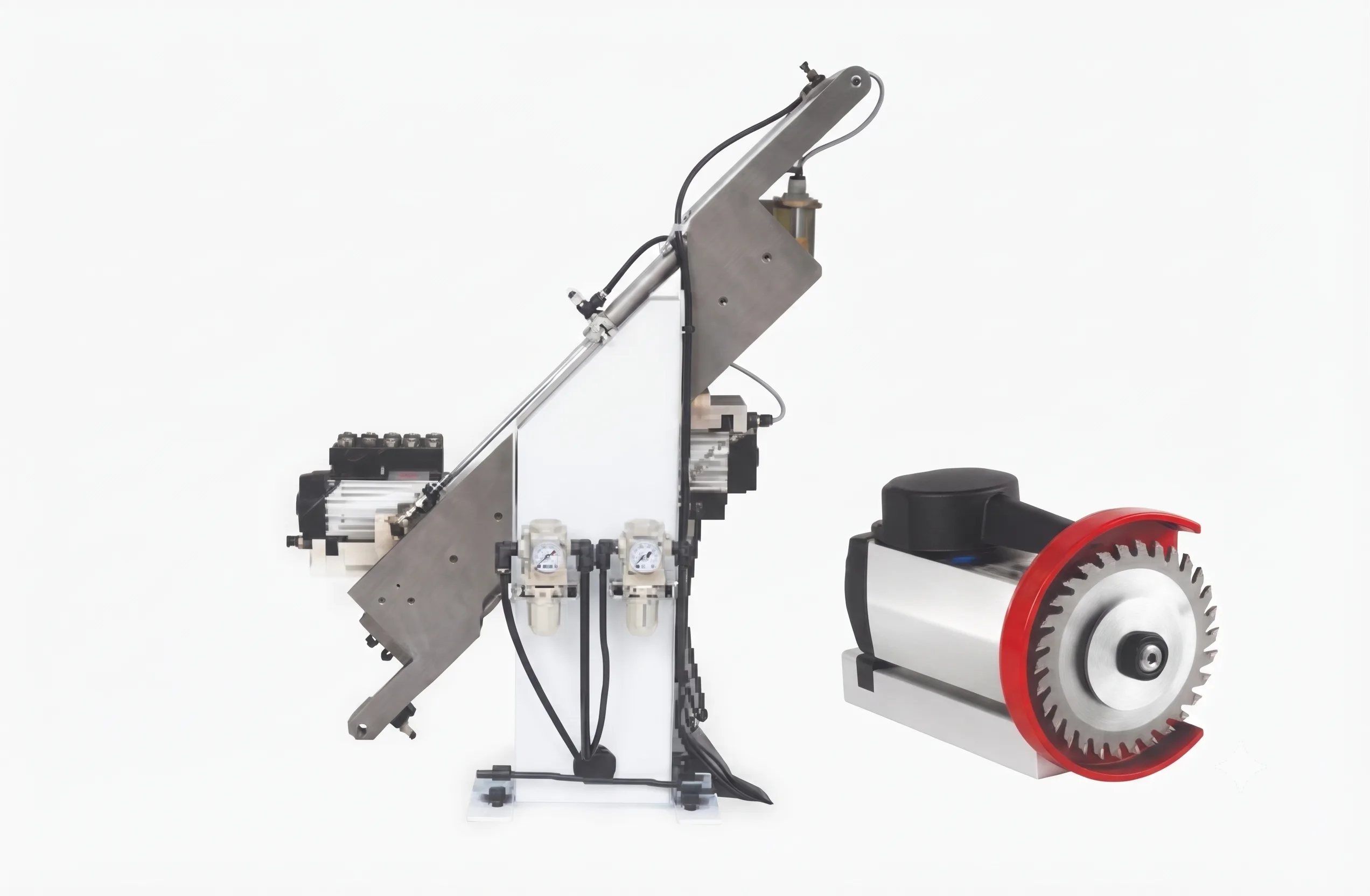

END CUTTING

  • Automatically cuts off the excess front and rear overhang of the PVC/ABS tape flush with the panel length.
  • Cuts off the extra edge tape sticking out from the front and back of the board.
  • Cuts the tape quickly before the tough PUR glue dries and hardens.

GLUE SCRAPING

  • The glue scraper helps remove excess adhesive from the joint surface of the panel and edgeband.
  • Flat blade knife with copying plate and air cleaning function
  • This process ensures that there is no glue on the panel or outside the application area.

LIQUID SPRAYING

  • Spraying anti-adhesive liquid on the panel will restrict the glue on the top and bottom surfaces of the panel.
  • Equipped with PLC-controlled pneumatic flow.
  • This process cleans the entire treated area to make it look rich and well-groomed.

BUFFING UNIT

  • Edge banding machine buff wheels are used to polish and buff the edges of the top/bottom wood panels to create a smooth and glossy finish.
  • which makes them sturdier and last longer.
  • Finishing the edge looks dimensional and attractive with this process.

TECHNICAL SPECIFICATION

High Speed Auto Edge Bander UEB-845

The UEB 845 from Umaboy redefines precision edge banding with its advanced 45° edge banding functionality, perfect for modern cabinetry and furniture applications demanding seamless beveled finishes. Built for professionals who require both speed and accuracy, the UEB 845 delivers exceptional performance for straight and angled edges alike.

Technical Specifications

TECHNICAL SPECIFICATION
MODELUEB 845
Edge banding thickness1.2 mm
Edge band width28-38
Minimum length of the panel300 mm
minimum width of the panel100 mm
Conveyor thickness adjustmentElectric
Conveyor Up/Down motor power0.37 kw
Total electric power15 kw
End cutting unit power2x0.55 kw
Buffing unit motor power2x0.18 kw
Total air pressure6-8 bars
Panel thickness18 / 22 / 25 mm
L x W x H (in mm)5000 x 900 x 1700
Note: Technical specifications may be changed without any prior notice. Product images are just for reference.
