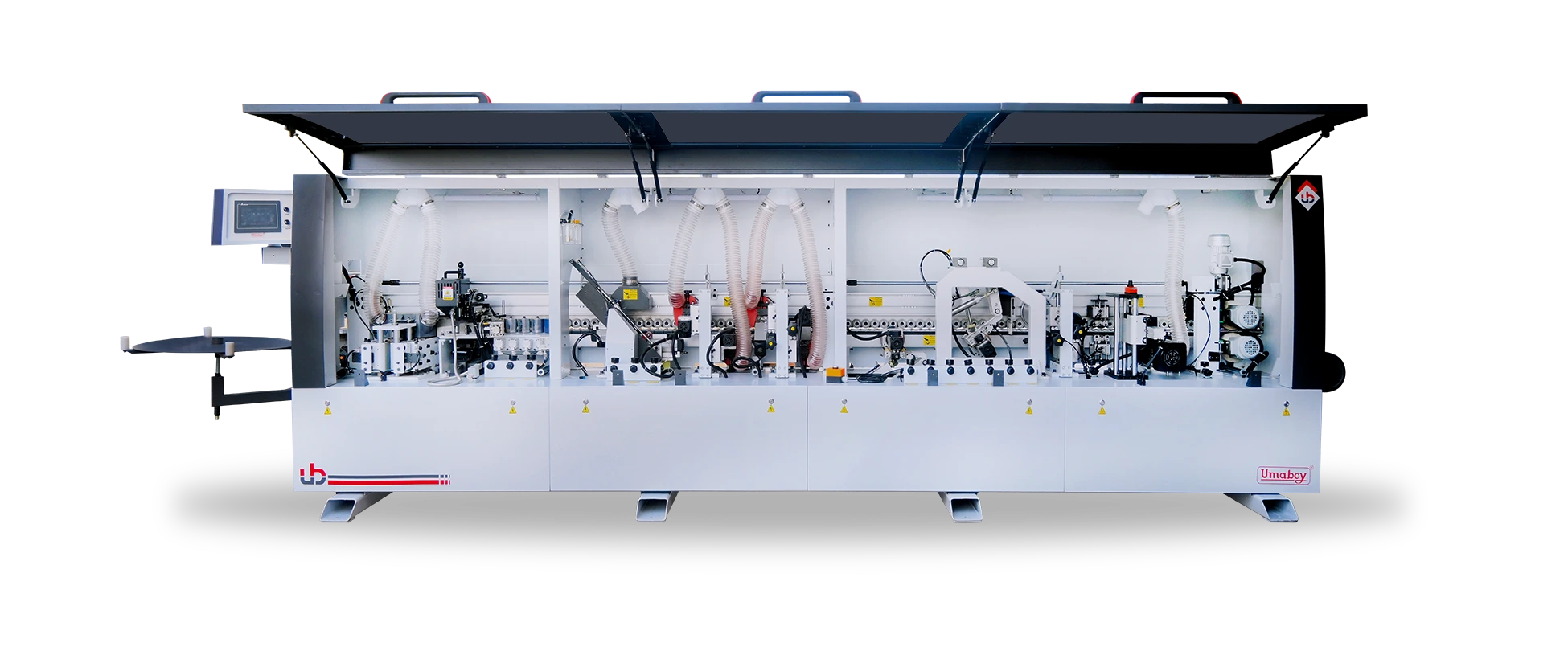

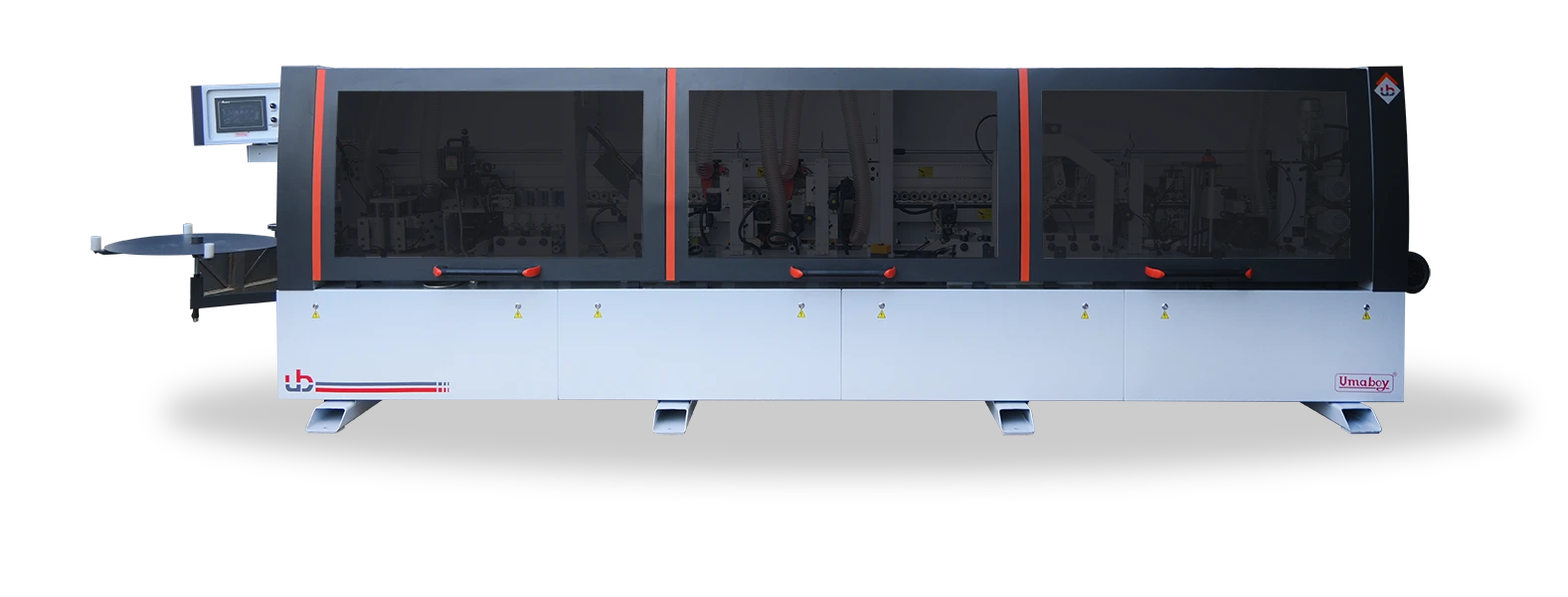

UEB 640 PCGD
AUTOMATIC EDGEBANDING MACHINE
WATCH PRODUCT VIDEO
PRODUCT INFORMATION DESCRIBED BELOW ↓
SEAMLESS EDGEBANDING MACHINE
SMART SOLUTION FOR ENHANCE QUALITY​
The machine can be performing with many different Edgebands such as PVC, ABS, veneer and acrylic On different types of boards such as plywood, chipboard, MDF/HDF..
PREMILLING UNIT
- Apply the hot melt glue on the panel, Pneumatic cutting of pvc edge banding as per the length of panel, gluing on entire surface of panel height.
- Teflon coated gluepot to prevent wastage of glue. It works wonders for clearing away burnt glue. Gluepot with a 2 kilogram capacity and a 1.5 kw plate heating.
- Having a nurling roller with a 500 watt heating element ensures uniformity of glue on panel edge.
- The high quality superior wiper controlled the flow of glue.
- These features are specially designed to ensure a consistently precise finish and superior quality and to avoid any poor quality and Inconsistency of glue.
GLUE UNIT
- Apply the hot melt glue on the panel, Pneumatic cutting of pvc edge banding as per the length of panel, gluing on entire surface of panel height.
- Teflon coated gluepot to prevent wastage of glue. It works wonders for clearing away burnt glue. Gluepot with a 2 kilogram capacity and a 1.5 kw plate heating.
- Having a nurling roller with a 500 watt heating element ensures uniformity of glue on panel edge.
- The high quality superior wiper controlled the flow of glue.
- These features are specially designed to ensure a consistently precise finish and superior quality and to avoid any poor quality and Inconsistency of glue.
PRESSURE ROLLER GROUP
- A pressure roller group consists of 4 pressure roller. The first pressure roller diameter is 150 mm and the remaining 3 pressure roller diameters are 100 mm
- All 4 pressure roller pneumatically operated. pressure can be adjustable by pnumatic pressure Nobe. function of pneumatic cylinder operated by PLC.
- The pressure rollers apply sufficient force to the panel to ensure that the glue adheres correctly and in the desired amount.
- It offers incredible results with a smooth finish and a long-lasting edge attached to the panel.
END CUTTING
- Unit used to cut excess pvc from both the end of panel. Equipped with high frequency motors with a power of 0.55 kW and 12,000 rpm and saw blades with a diameter of 150 mm.
- High reliability and precision as Installed large linear guides. 2 saw blades diam. 104 x 3.0 x 22 mm, T = 30.
- This process ensures a precise edge finish for a perfect finished look.
ROUGH TOP/BOTTOM TRIMMING
- Perform Initial trimming of the top and bottom edges of the glued edge.
- Top and bottom flat triming can be performed with this unit.
- suitable for acralyc edgebanding,
- Comes with 2 high end frequency motors with suction hood and front and vertical Guide Plate
- Motors manually tiltable between 2 working positions: Flush and radius trimming.
- All spindles equipped with encoder readouts for fast adjustment
- High Frequency spindle motor – 0.55 kw x 2 , 12000 RPM
FINE TOP/BOTTOM TRIMMING
- Performs fine trimming of the top and bottom edges of the pvc edge.
- Comes with 2 highend frequency motors with suction hood and vertical Guide Plate.
- Motors manually tiltable between 2 working positions: Flat and radius trimming.
- Easy adjustments of trimming head as per thickness of pvc.
- High Frequency spindle motor – 0.55 kw x 2, 12000 RPM.
CORNER ROUNDING
- corner rounding unit for front and rear edges for perfect corner trimming.
- This unit works in different profile in prosessed post forming machine like half nose, full nose, and duck nose.
- having a capacity of 50 mm panel.
- High Frequency spindle motor – 0.55 kw x 2, 12000 RPM.
- Workpiece length min – 150 mm, edgebanding thickness upto 0.4 mm to 3mm.
- Thanks to it’s movement of circulating over the edge of panel with the help of linear guide ways and pneumatic cylinder gives the best result in the corner of panel.
PVC SCRAPPING UNIT
- PVC Scrapping to remove excess pvc from top and bottom edge.
- Comes with standard profile of 2 mm.
- It provides better edge, consistency, precision and smoothness..
- Includes 2 R-profile blades with suction hood and front and vertical guide plate..
GLUE SCRAPPING
- The glue scraper helps remove excess adhesive from the joint surface of the panel and edgeband.
- Flat blade knife with copying plate and air cleaning function
- This process ensures that there is no glue on the panel or outside the application area,.

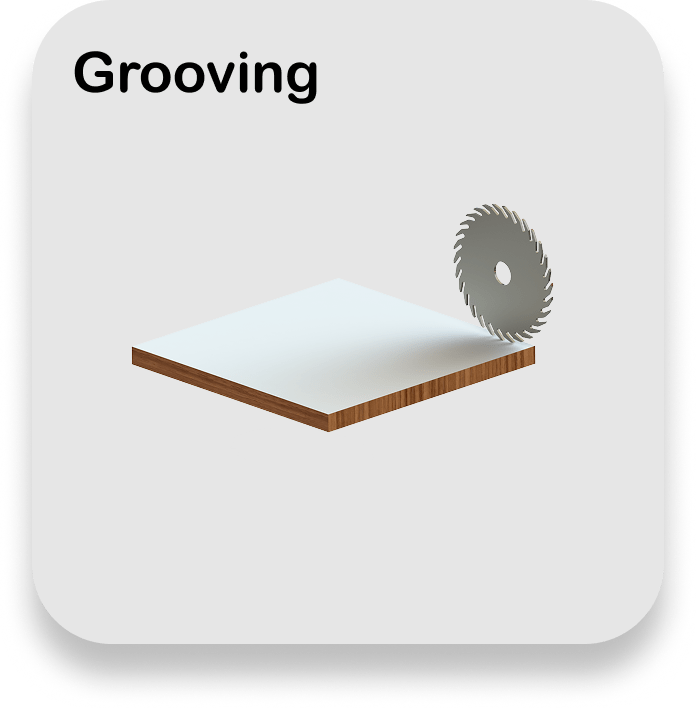

GROOVING UNIT
- In built grooving function in machine gives easy working for make a groove on board
- One can use maximum 9 mm grooving cutter.
- This function is PLC controlled, so its very easy to operate.
- Useful for backpanel application in furniture.
LIQUID SPRAYING UNIT
- Spraying anti adhesive liquid on panel before buffing unit give the clean finished surface.
- Equipped with PLC controlled pneumatic flow.
- This process cleans the entire treated area to make it look rich and well-groomed..
BUFFING UNIT
- Edge banding machine buff wheels are used to polish and buff the edges of the top/bottom wood panels to create a smooth and glossy finish.
- Finishing the edge looks dimensional and attractive with this process.
TECHNICAL SPECIFICATION
High Speed Auto Edge Bander UEB-640 PCGD
Heavy Duty Machine For Large Scale Production
Salient Features
- High and machining performance High Speed Processing with user friendly and trouble free operation
- Smart Touch PLC System integrated with encoder controlled every functions of the machines which gives accurate functioning
- Motorised up-down of conveyer belt
- Equipped with Diamond pre milling Cutter
- Teflon coated glue pot easy for cleaning, 2.5 kg capacity of EVA glue
- Safety air tank for constant supply of air to machine
Technical Specifications
Model | UEB-640 PCGD |
---|---|
Electric Level | 415-220/50 hz |
Edge Material Thickness | 0.4-3 mm |
Panel Thickness | 10-50 mm |
Minimum Width of The Panel | 60 mm |
Maximum Leangth of The Panel | 130 mm |
Converyer Speed | 18 m/min |
Conveyer Thickness Adjustment | Electric |
Conveyer Up/Down | 0.37 kw |
Total Electric Power | 16 kw |
Total Air Pressure | 6-8 bars |
Pre-milling Motor Power | 2 x 1.5 kw |
End Cutting Unit Power | 2 x 0.55 kw |
Top/bottom Fine-triming Unit Power | 2 x 0.55 kw |
Top/bottom Rough-triming Unit Power | 2 x 0.55 kw |
Corner Rounding Unit Power | 2 x 0.3 kw |
Grooving Unit Motor Power | 4 Kw |
Max. Depth of Grooving | 17+9 mm blade |
Buffing Unit Power | 2 x 0.37 kw |
Overall Size (L X H X W) | 7300 X 1650 X 1000 |
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Let's talk !
Please fill out this form and relax.
Our expert executive team will reach out to you and
offer the most suitable advice according to your needs.
Please contact we would like to help you.​
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Related to Products you've viewed
UEB 240 S
AUTOMATIC EDGEBANDING MACHINE
UEB 310 c
AUTOMATIC EDGEBANDING MACHINE
Explore Our Most Selling Machines
Edge Bander
Panel Saw
Hydraulic Coldpress
Multi Boring
Urex CNC Router
About Automatic Edge Bander UEB-640 PCGD for Sale
Automatic Edge Bander UEB-640 PCGDÂ with Seamless PerformanceÂ
The UEB-640 PCGD is engineered to meet the diverse needs of both smaller and larger woodworking operations. This versatile edge banding machine integrates features from both entry-level and high-end models, offering flexibility and functionality for various production requirements. Key aspects include:
The High Speed Auto Edge Bander UEB-640 PCGDÂ feature and advancement
Dual Segment Features: Combines the benefits of both lower and higher-end machines, providing a range of functionalities suited for different scales of production.
Versatility: Designed to handle both small-scale and large-scale woodworking projects efficiently, making it ideal for a broad spectrum of applications.
Advanced Edge Banding: Includes advanced edge banding capabilities, ensuring high-quality finishes with minimal manual intervention.
Flexibility: Adaptable to different panel sizes and materials, accommodating a wide variety of woodworking needs.
Features:
- Automated Application: These machines automatically apply edge bands to panels with high precision, reducing manual labor and ensuring consistent results.
- Adjustable Settings: Modern models allow for customizable edge banding thickness and adhesive application settings to handle various materials and edge profiles.
- Integrated Trimming: Built-in trimming tools cut excess edge banding for a flush, clean finish, minimizing additional processing steps.
- Digital Controls: Touchscreen interfaces and programmable settings enable easy operation and precise control over the banding process.
- High-Speed Operation: Designed for rapid processing, automatic edge banders improve production efficiency by handling large volumes of panels quickly.
The UEB-640 PCGD provides a balanced solution that caters to both smaller workshops and larger production facilities, making it a versatile choice for businesses with varied edge banding needs.
Â
Frequently Asked Questions ?
What Types of Automatic Edgebanding Machines Does Umaboy, a Manufacturer of Auto Edge Bander UEB-640 PCGD, Manufacture & Supply?
The Umaboy Automatic Edgebanding Machine stands out for its robust construction, user-friendly interface, and advanced features such as precise digital control for feed speed and glue application. It is designed to deliver consistent, high-quality edge banding with minimal setup time, making it ideal for both small workshops and large-scale production facilities.
What Industries Can Benefit from Umaboy's Automatic Edgebanding Machines UEB-640 PCGD?
Umaboy’s UEB-640 PCGD automatic edgebanding machines are ideal for industries involved in furniture manufacturing, cabinetry, interior design, and custom woodworking. They are particularly beneficial for companies that require high-quality edge banding on materials such as MDF, particleboard, and plywood, commonly used in producing cabinets, office furniture, and home decor.
Is UMABOY available as an Auto Edge Bander UEB-640 PCGD Supplier in India?
Yes, UMABOY is available to supply theirUEB-640 PCGD edgebanding machines across India. They offer nationwide service, ensuring prompt delivery, installation, and support for customers throughout the country.
How Does Umaboy Ensure the Quality and Durability of Its High Speed Auto Edge Bander UEB-640 PCGD?
Umaboy ensures the quality and durability of its edgebanding machines UEB-640 PCGD through rigorous testing and quality control processes during manufacturing. The machines are built with high-grade materials and components, designed to withstand heavy use in industrial environments. Each machine undergoes extensive performance testing to ensure it meets Umaboy’s strict standards for precision, reliability, and longevity.
What Makes the Umaboy Automatic Edgebanding Machine Different from Other Brands?
UMABOY is the only manufacturer of edgebanding machines UEB-640 PCGD in India, with over 40 years of experience that has forged a strong bond with the furniture industry, enabling them to handle any scenario and offer extensive customization.
