UPS 3200A
PANEL SAW WITH SLIDING TABLE
WATCH PRODUCT VIDEO
PRODUCT INFORMATION DESCRIBED BELOW ↓
HIGH PERFORMANCE CUTTING SOLUTION
INDUSTRIAL HEAVY DUTY SOLUTION FOR FURNITURE FACTORY
UMABOY specifically built this PANALE SAW Machine to conduct woodcutting with precision and attention to quality. This may work well for cutting solid wood. MDF board, laminated board, plywood, and particle board.
SAW UNIT
- For easy operation, smooth running with precise measurement cutting
- Machining of head is done by VMC with 5 microne preciosion.
- The system leads to vibration and noise free operation.
- Perfectly balanced housing.
SLIDING TABLE
- Extremely smooth running and multi chamber system with linear steel bar bearing for high life.
- Double layer alluminium structure gives better strength.
- In built brush system cleans sliding road automatically.
ANGLE FENCE
- Accurate angle adjustments, efficient operation and calibration are all made possible by the precise angle meter
- Helping to cut any type of custom size angle.
THE RIP FENSE
- For easy operation, smooth running with precise measurement cutting.
- Manual rip fence adjustment with cutting capacity upto 1220mm.
TECHNICAL SPECIFICATION

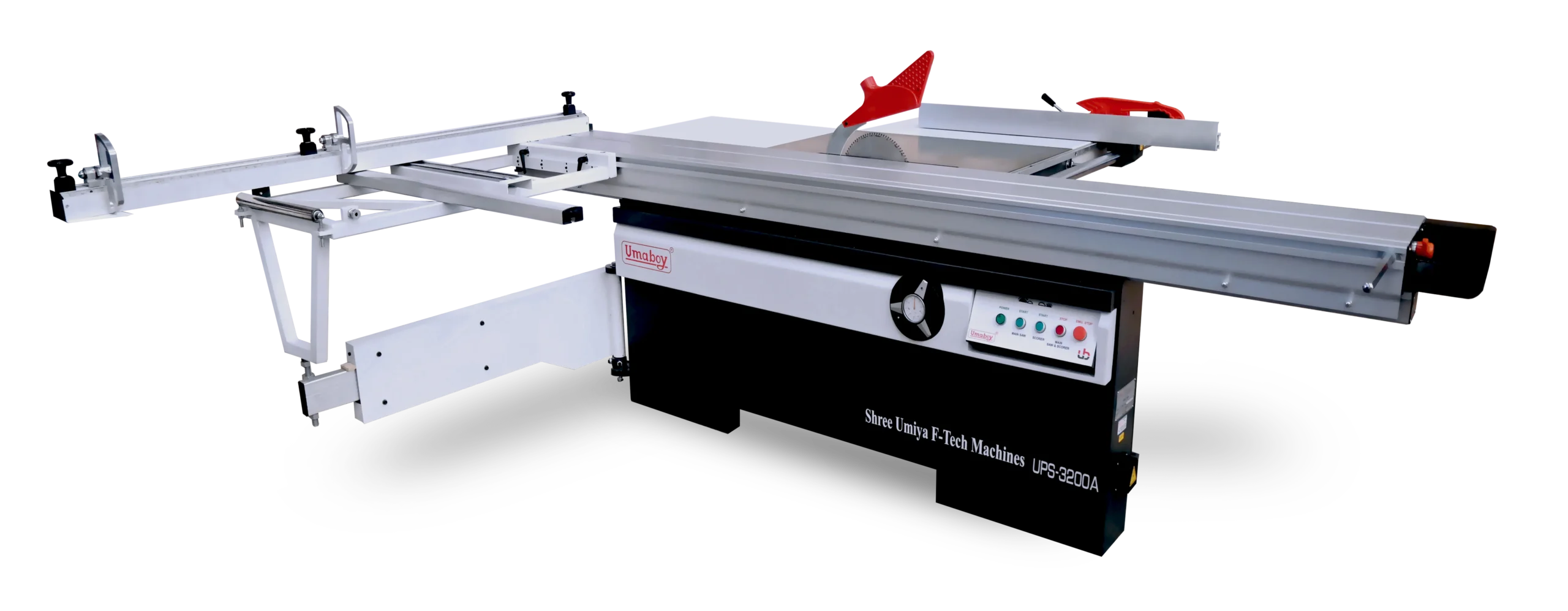

Panel Saw UPS 3200A
This panel saw machine is specifically built to conduct Panel cutting with precision and attention to quality.
Technical Specifications
| Model | UPS 3200A |
|---|---|
| Dimension of sliding table | 3200 x 375 mm |
| Gross cut capacity | 3200 mm |
| Width of cut between saw blade and rip fence | 1220 mm |
| Saw blade diameter | 300 m (250-300) |
| Height of cut | 75 mm |
| Height of cut ( in 45°) | 50 mm |
| Speed of main saw spindle | 4000/6000 rpm |
| Spindle diameter | 30 mm |
| Tilting saw blade | 0-45° |
| Main motor | 4 kw |
| Scoring saw blade diameter | 120 mm |
| Speed of scoring saw blade | 8000r/min |
| Scoring spindle diameter | 20 mm |
| Scoring motor | 0.75kw |
| Overall dimensions | 3250 x 3250 x 900 mm |
| Rip fence movemen | Manual |
| 45° Tilt | Manual |
| Cutter Up Down Movement | Manual |
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Let's talk !
Please fill out this form and relax.
Our expert executive team will reach out to you and
offer the most suitable advice according to your needs.
Please contact we would like to help you.​
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Related to Products you've viewed
Explore Our Most Selling Machines
Edge Bander
Panel Saw
Hydraulic Coldpress
Multi Boring
Urex CNC Router
About Panel Saw Machine 3200A
Exploring the Ultra precision Panel Saw 3200A
UMABOY specifically built this Machine to conduct woodcutting with precision and attention to quality. This may work well for cutting solid wood.
MDF board, laminatedboard, plywood, and particle board. Aluminum alloy that has been utilized in sliding guide panel with first rate power for heavy and hard work. This machines include a Sliding desk of high-power material, making it not likely to bend easily. The UMABOY Panel Saw 3200A is specifically engineered for precision woodcutting, making it ideal for processing solid wood, MDF boards, laminated boards, plywood, and particle boards. The machine features a high-strength aluminum alloy sliding guide panel, providing exceptional durability and power for heavy-duty applications. Additionally, the sliding desk is constructed from a high-power material, ensuring that it resists bending even under intense use. For those looking to Buy Panel Saw 3200A, UMABOY offers a top-tier solution.
The Development and Uses of Panel Saw 3200A MachineÂ
Panel saw machines have evolved from basic manual saws to advanced, computerized systems. Early panel saws were operated manually, requiring significant effort and skill to achieve precise cuts. Modern panel saws feature automated controls, digital measurement systems, and enhanced safety features. Innovations include improved blade technology, advanced dust collection systems. The Panel Saw 3200A represents a significant evolution from early manual saws to today’s advanced computerized systems. Initially, panel saws required considerable effort and skill to produce precise cuts. However, modern Panel Saw 3200A Manufacturer and Supplier UMABOY has integrated automated controls, digital measurement systems, and enhanced safety features into this model. This evolution has led to innovations such as improved blade technology and advanced dust collection systems, making the Panel Saw 3200A a leading choice among UPS 3200A Panel Saw Machine suppliers in India.
Application of Panel Saw 3200A machineÂ
- Precision Cutting: Equipped with advanced measurement systems like digital readouts and laser guides, the Panel Saw 3200A ensures highly accurate cuts with minimal tolerance. This precision makes it a top choice for professionals seeking a reliable Industrial Panel Saw 3200A Manufacturer.
- Adjustable Fence Systems: These allow for quick adjustments to cut various sizes and angles accurately. Some models feature digital controls for exact positioning. The machine features adjustable fence systems that allow for quick modifications to accommodate various sizes and angles. Some models even include digital controls for precise positioning, further solidifying UMABOY’s reputation as a premier Wholesale Panel Saw 3200A Supplier.
- High-Power Motors: Powerful motors provide the capability to cut through thick and dense materials efficiently. The powerful motors in the Panel Saw 3200A allow it to cut through thick and dense materials efficiently, making it indispensable for large-scale woodworking and manufacturing operations.
- Dust Collection: Integrated dust extraction systems maintain a clean work environment by capturing sawdust and debris during operation. Integrated dust extraction systems maintain a clean work environment by capturing sawdust and debris during operation, a feature highly valued by those looking to Buy Panel Saw 3200A.
- Safety Features: Enhanced safety mechanisms include blade guards, emergency stop buttons, and anti-kickback devices to protect operators.
The Panel Saw 3200A machine features and advancements
Precision and Accuracy: Modern panel saws offer advanced measurement systems, digital readouts, and laser guides, ensuring highly accurate cuts and minimal tolerance.
Increased Efficiency: Automation features, such as programmable cut sequences and automatic feed systems, streamline the cutting process, significantly boosting productivity and reducing manual labor. Automation features, such as programmable cut sequences and automatic feed systems, streamline the cutting process, boosting productivity and reducing the need for manual labor. This makes it a sought-after product from Panel Saw 3200A Manufacturer and Supplier UMABOY.
Enhanced Safety: Improved safety mechanisms, including blade guards, emergency stop buttons, and anti-kickback devices, help protect operators and reduce the risk of accidents.
Versatility: Modern panel saws can handle a wide range of materials and thicknesses, including plywood, MDF, and particleboard, making them suitable for various applications in woodworking and manufacturing. Capable of handling a wide range of materials and thicknesses, including plywood, MDF, and particleboard, the Panel Saw 3200A is suitable for various applications in woodworking and manufacturing, making it a versatile option among UPS 3200A Panel Saw Machine suppliers in India.
Better Dust Management: Integrated dust collection systems maintain a cleaner work environment by effectively capturing sawdust and debris, improving overall shop cleanliness and air quality.
Frequently Asked Questions ?
What Types of Panel Saw Machines Does Umaboy Manufacturing, Supply and export ?
Umaboy manufactures and supplies a wide range of panel saw machines, including manual, semi-automatic, and fully automatic models. Each machine is designed for precision cutting, durability, and ease of use, catering to the needs of small workshops, medium-sized businesses, and large industrial operations. Umaboy offers a wide range of panel saw machines, including the highly advanced Panel Saw 3200A, which is known for its precision, efficiency, and durability. These machines are ideal for various woodworking applications and are highly regarded by Industrial Panel Saw 3200A Manufacturer experts.
What Are the Unique Features of Umaboy's Panel Saw 3200A Machines?
Umaboy’s 3200A panel saw machines feature advanced technologies such as digital control systems, precision cutting mechanisms, and robust construction. Our machines also include user-friendly interfaces, adjustable cutting angles, and efficient dust extraction systems, all designed to enhance productivity and operator safety. The Panel Saw 3200A stands out for its high-power motors, adjustable fence systems, and integrated dust collection, making it a top choice for professionals seeking a Wholesale Panel Saw 3200A Supplier.
How Umaboy Provide service & support after sales Panel Saw 3200A?
Umaboy is committed to delivering excellent service and support after sales Panel Saw 3200A. Their support system includes:
Customer Support Team: They offer a dedicated customer service team available via phone, email, or live chat to address any issues or queries you might have.
Technical Assistance: Umaboy provides technical support for troubleshooting and resolving any operational problems with their machinery. This can include on-site visits if necessary.
Warranty and Repairs: They offer a comprehensive warranty for their products, which covers repairs and replacements as needed.
Maintenance Services: Regular maintenance services and inspections are available to ensure that machinery remains in optimal condition.
Training and Resources: They provide training resources and manuals to help users understand and maximize the functionality of their machinery.
Parts Availability: Umaboy ensures that replacement parts are readily available and can be ordered through their service channels.
Overall, Umaboy aims to ensure that their customers receive timely and effective support to maintain their machinery's performance and longevity.
How Does Umaboy Ensure the Quality and Durability of Its Panel Saw 3200A Machines?
Umaboy ensures the quality and durability of its panel saw machines through the use of high-quality materials and precision engineering. Each machine undergoes rigorous testing and adheres to advanced manufacturing techniques. The company maintains strict quality control at every production stage. Continuous improvement and adherence to industry standards further guarantee reliability and performance. Umaboy uses high-quality materials and advanced manufacturing processes to ensure the Panel Saw 3200A meets rigorous industry standards for quality and durability, making it a reliable choice for those looking to Buy Panel Saw 3200A.
What makes Umaboy's 3200A panel saws stand out in terms of quality, performance, and durability?
Umaboy's 3200A panel saws stand out due to their exceptional quality, performance, and durability. They are crafted using high-grade materials and precision engineering to ensure long-lasting reliability. Each saw undergoes rigorous testing and adheres to advanced manufacturing techniques, maintaining top performance under heavy use. Continuous design improvements and strict quality control further enhance their durability and effectiveness, making Umaboy a trusted choice for high-quality panel saws. Umaboy's Panel Saw 3200A is distinguished by its precision engineering, robust construction, and advanced features, ensuring it delivers exceptional performance and durability, making it a leading choice among UPS 3200A Panel Saw Machine suppliers in India.
