CANADIAN SUBSIDIARY

UBS 3200 AUTO+

AUTOMATIC CNC BEAM SAW MACHINE

DOWNLOAD PRODUCT INFO

PRODUCT INFORMATION DESCRIBED BELOW ↓

HIGH PERFORMANCE MULTI CUTTING SOLUTION

SMART SOLUTION FOR ENHANCE QUALITY​

This machine processes the attributes of an excellent design, effortless functionality, and rapid manufacturing. It is particularly well-suited for precision cutting of straight and smooth wooden panels used in the production of office furniture and household furniture.

PROCESSING

  • The components and machine frame undergo precision machining
    using state-of-the-art CNC equipment for metalworking.
  • This streamlined process ensures high processing accuracy and
    minimizes vibrations during operation.

QUALITY CONTROL

  • The utilization of sophisticated measuring tools and a rigorous quality control system ensures that the machinery and components undergo thorough inspection and are certified to meet exceptionally high standards.
  • Each machine comes with a quality certificate signed by a specialist in quality control. seamless task.
  • Exceptional quality combined with cutting-edge technology can lead to a 40% boost in efficiency.

OPTIMIZING SOFTWARE

  • The machine is equipped with professional optimization software to ensure efficient handling and convenient operation.
  • Additionally, it is compatible with other globally recognized software for further application.
  • The software is incredibly powerful and user-friendly, offering a
    range of features such as comprehensive work process management with detailed reports, simulation of cutting patterns, display of error messages, printing of barcodes, and numerous other advantages.

MACHINE BODY

  • The steel plate possesses exceptional rigidity and durability, ensuring an extended lifespan and precise accuracy of up to ±0.03 mm, thereby minimizing potential maintenance expenses.
  • A polished surface reduces the risk of scratches on components.

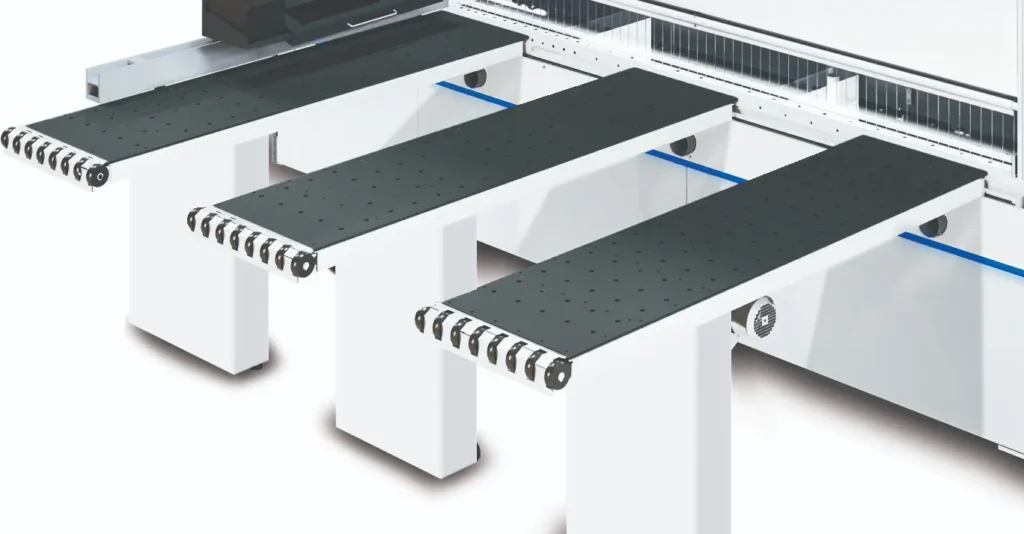

AIR FLOAT FEED TABLE

  • The presence of steel balls on the table surface, along with a fan, guarantees smooth movement of panel stacks by providing constant air circulation.
  • The black table plate is sturdy and resistant to wear, ensuring the optimal protection of the panel surface.
  • Three pipes are linked to three float tables, and an air blower positioned beneath the table provides an ample supply of air. The flow rate is measured.

TECHNICAL SPECIFICATION

Beam Saw Machine UBS 3200+

Saw Carriages

The saw carriage holds a 400 mm diameter main blade and standard 180 mm diameter scoring blades with an independent motor.
Protected by special dust scrapers.
Pneumatic clamping for ensuring both ends are clamping.

Silent Features

After automatically testing sheet material and calling off the length of needed sheet, it will rapidly return to await orders.
The saw is firm, and high-quality guide tracks & saw blades ensure stable mechanical performance.
Can saw many layers of boards to improve efficiency
An advanced dust precipitating system can reduce environmental pollution.

Computer Controlled Beam Saw Machine

TECHNICAL SPECIFICATION
MODELUBS 3200 AUTO+
Saw cutting length3200 mm
Saw cutting thickness120 mm
Diameter of main saw blade450 mm
Diameter of main saw blade shaft75 mm
Revolving speed of main saw blade4800 r/min
Diameter of scoring saw blade180 mm
Diameter of scoring saw blade shaft50 mm
Revolving speed of scoring saw blade6900 r/min
Advance speed of saw base (stepless)9-50 m/min
Back speed of saw base100 m/min
Drive motor of saw base1 kw
Drive motor of main saw blade15 kw
Automatic feeding motor1.5 kw
Automatic feeding speed50 m/min
Operating pressure5~8 kg/cm
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.

Explore Our Most Selling Machines

Edge Bander
Edge Taping Machine

Edge Bander

Hydraulic Coldpress
Laminate Processing Machine

Hydraulic Coldpress

Panel Saw
Panel Cutting Machine

Panel Saw

Multi Boring
Multiple Drilling machine

Multi Boring

CNC Router
Engraving Machine

CNC Router

CNC Nesting
2D / 3D Engraving Machine

CNC Nesting

Auto Beam Saw
Multi Panel Cutting Saw

Auto Beam Saw

Six Sided Drilling
CNC Drilling

Six Sided Drilling

Let's talk !

Please fill out this form and relax.
Our expert executive team will reach out to you and
Offer the most suitable advice according to your needs.

Please contact we would like to help you.​

Please enable JavaScript in your browser to complete this form.
REQUIREMENTS

About Automatic CNC Beam Saw 3200 AUTO+

CNC beam saw machines, like the Beam Saw Machine UBS 3200, are renowned for their precision and efficiency in cutting large panels. As a sought-after model in the industry, the UBS 3200 Beam Saw Machine is available wholesale from suppliers and manufacturers of the UBS 3200 Beam Saw Machine. These machines offer automated control for accurate, repeatable cuts and can handle various materials such as wood, MDF, and plywood. With advanced features like programmable settings and digital measurement, they enhance production speed and streamline workflows by integrating with other systems. Whether you’re looking to buy the UBS 3200 Beam Saw Machine for sale or seeking a reliable UBS 3200 Beam Saw Machine supplier in India, this machine is ideal for high-volume operations, delivering consistent performance and versatility in woodworking and manufacturing.

The CNC Auto Beam Saw 3200 AUTO+ machine features an advancement

  • Features:

    1. Precision Cutting: CNC auto beam saws utilize advanced computer control systems for highly accurate and repeatable cuts, ensuring precision across large panels.
    2. Automated Feed System: These machines include automated feeding and positioning systems that handle material efficiently, reducing manual labor and setup time.
    3. Digital Measurement and Control: Equipped with digital readouts and touchscreen interfaces, they allow for precise adjustments and programming of cutting parameters.
    4. High-Speed Operation: Designed for high-speed cutting, they enhance productivity and throughput in manufacturing environments.
    5. Integrated Safety Features: Modern CNC beam saws include safety mechanisms such as blade guards, emergency stops, and sensors to ensure operator protection and reduce accidents.

    Advancements:

    1. Enhanced Automation: Advanced automation features, including automatic loading and unloading, streamline the cutting process and minimize manual intervention.
    2. Advanced Software Integration: Newer models offer sophisticated software for programming complex cuts and integrating with other systems, improving workflow and efficiency.
    3. Improved Cutting Technology: Innovations in blade technology and cutting mechanics increase durability and performance, allowing for cleaner cuts and extended machine life.
    4. Real-Time Monitoring: Modern machines have real-time monitoring and diagnostic capabilities that help detect issues early, ensuring consistent performance and reducing downtime.
    5. Increased Versatility: Recent advancements allow CNC auto beam saws to handle a wider range of materials and panel sizes, enhancing their adaptability for diverse applications.
