BUILT FOR PROFESSIONALS
UPF 1000
POST-FORMING MACHINE
Engineered for Accuracy, Stability, and Efficiency. The UPS 3200 A++ delivers smooth, precise cuts for a wide range of woodworking applications.
PRODUCT INFORMATION DESCRIBED BELOW ↓
HIGH PERFORMANCE LAMINATE PRESSING SOLUTION
SMART SOLUTION FOR ENHANCE QUALITY
Post-forming is primarily utilized for creating post-form office furniture and pressing laminate with curved edges. It is used for various applications such as kitchen tops, desk tops, table tops, shutter cabinets, shelves, cupboards, and office furniture, among others.

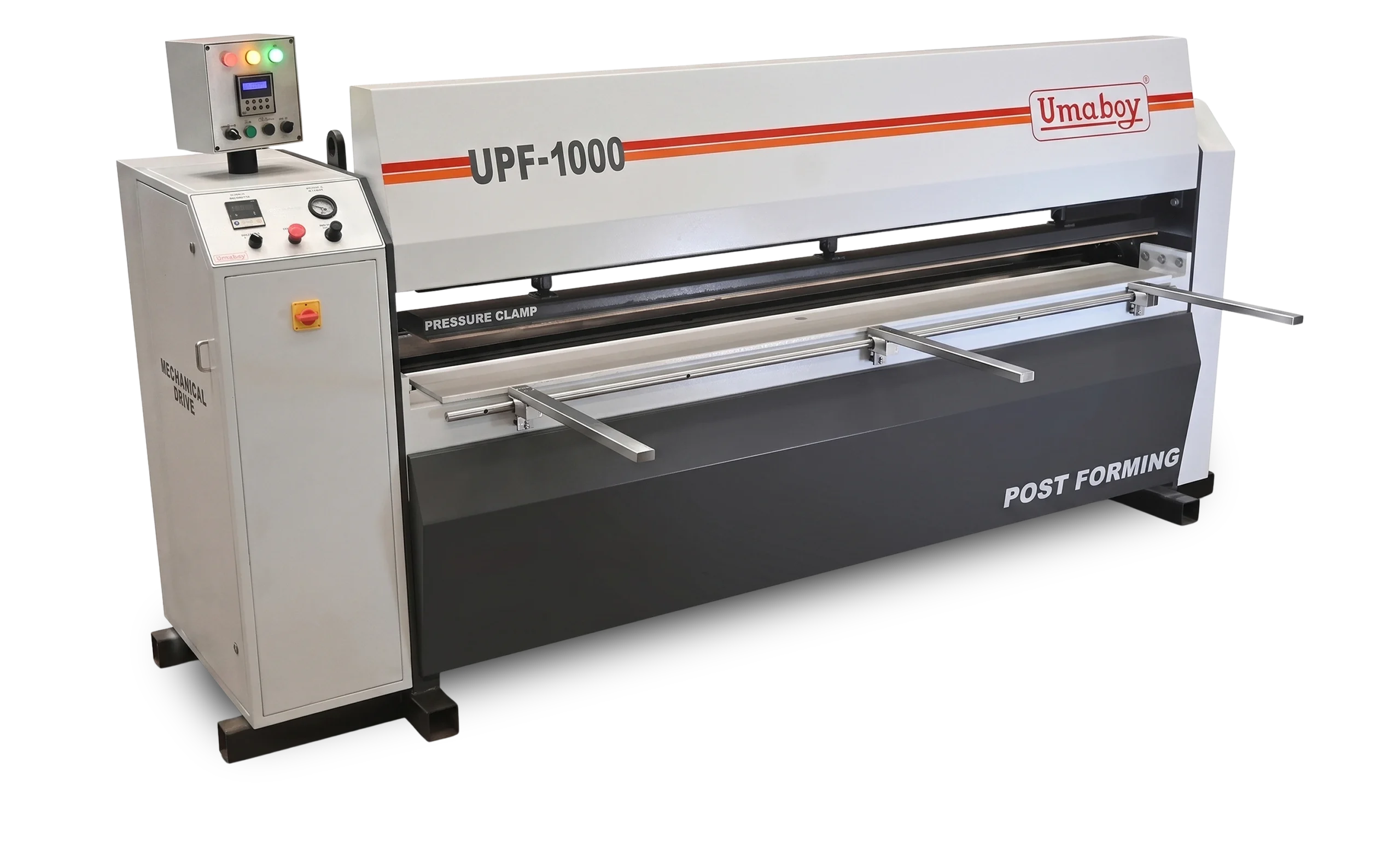

Automatic Post Forming Machine UPF 1000
Umaboy is the best post-forming machine UPF 1000 supplier in India for top-quality machinery and exceptional service.
Application
Widely used for making post-form office furniture & curvature-edge laminate pressing. Kitchen tops, desk tops, table tops, shutters, cabinets, shelves, cupboards, office furniture, etc.
- The Post-Forming Machine UPF 1000 is a functional and productive machine and is equipped with 1800 movable and mechanical arms to give shape to laminate in any shape on board.
- The UPF 1000 post-forming machine guarantees precise, efficient, and productive operation.
Salient Features
- PLC control panel, which has a capacity of 15 job programs.
- Special pneumatic gauge is operated by 2 pneumatic cylinders for repetitive job settings.
- 8 pneumatic cylinders to apply uniform pressure on the job through the forming heater bar assembly. for effective bonding of laminate.
- Long-life heater bar ground and hardened.
- Backstops facility.
- Possibility to laminate more than one small board.
- An automatic post-forming cycle with variable heating time, stop-and-go time, and holding time can be adjusted to profile.
- A drive motor with brake is provided to avoid
- slippage of rotary parts.
- Motion of the heater bar.
- Mechanical drive control by limit switch.
Technical Specification
| TECHNICAL SPECIFICATION | |
|---|---|
| MODEL | UPF 1006 |
| Maximum length of job | 2440 mm |
| Minimum length of job | 300 mm |
| Job thickness range | 16 mm to 125 mm |
| Minimum job width | 150 mm |
| Maximum heating temp. | 200° C |
| Air pressure | 7 kg/cm² |
| Heating element | 1.5 kw |
| Electric motor-3 phase | 0.5 hp |
| Control type | PLC fully automatic |
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Explore Our Most Selling Machines
Edge Bander
Hydraulic Coldpress
Panel Saw
Multi Boring
CNC Router
CNC Nesting
Auto Beam Saw
Six Sided Drilling
Let's talk !
Please fill out this form and relax.
Our expert executive team will reach out to you and
Offer the most suitable advice according to your needs.
Please contact we would like to help you.
Manufacturer of Post Forming Machine UPF 1000
UMABOY’s post-forming machine excels in precision and efficiency for creating custom profiles and shapes in laminate materials. Designed for versatility, it handles a range of applications, including edge banding and contour shaping. The machine’s advanced technology ensures consistent, high-quality finishes with minimal waste. Its robust construction and user-friendly controls enhance reliability and ease of operation. Ideal for woodworking and cabinetry, UMABOY’s Post Forming Machine delivers exceptional performance for professional results.
The Post Forming Machine UPF 1000 feature and advancement
Features of Post-Forming Machines’ Forming Tools:
- Tooling: Includes a range of interchangeable forming tools and molds for creating various shapes and profiles.
- Adjustability: Tools and molds can be easily adjusted or replaced to accommodate different designs and requirements.
Control System
User Interface: Features an intuitive control panel with digital displays for temperature, pressure, and timing settings.
Automation: Includes programmable settings for automated forming processes, enhancing efficiency and repeatability.Frame Construction:
Frame: Built with a robust steel or aluminum frame for durability and stability during operation.Work Table: A solid, flat work table with precision alignment for accurate laminate placement and processing
Safety Guard:
- Emergency Stop: Equipped with an emergency stop button for quick shutdown in case of emergencies.
- Protective Guards: Includes safety guards and covers to protect operators from moving parts and heat.
