Automatic Edge Band solutions tailored
to
your business needs
Redefining Speed
Fully Automated Edgebanders for High-Volume Production

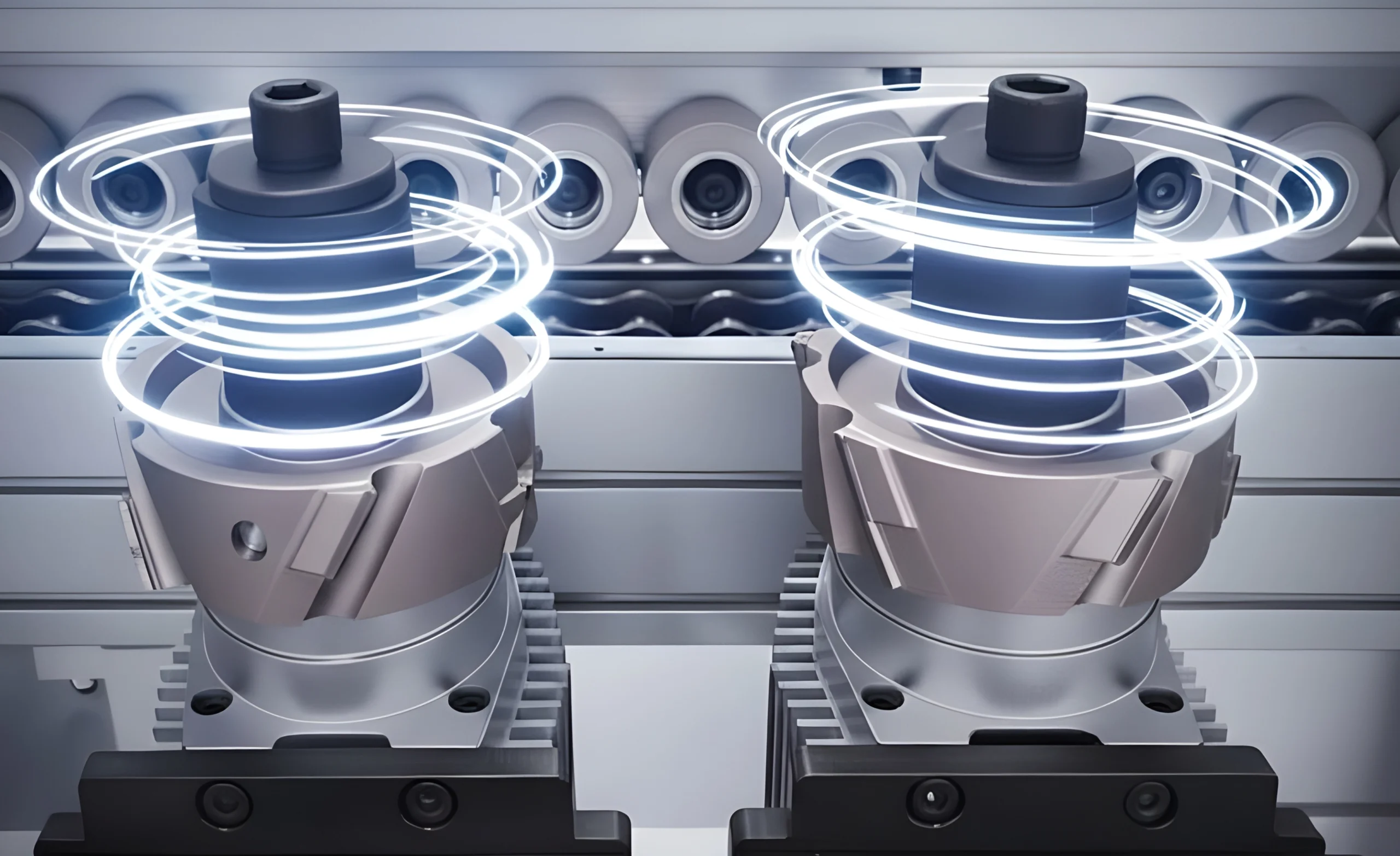

Pre-milling Section
- An automatic length sensor switch is installed.
which allows accurate determination of panel
length and processing of the entire panel. - corrects the panel’s surface using premium auto
-set High RPM Spindle frequency motors
(revolves both counter-clockwise and
clockwise to provide a precise, chip-free finish) - Equipped with a 2 x 2.2 KW spindle motorpowered, 12000 RPM diamond cutter head.
Gluing Device
- Apply the hot melt glue on the panel, pneumatically cut the PVC edge banding as per the length of the panel, and glue it on the entire surface of the panel height.
- Teflon-coated glue pot to prevent wastage of glue. It works wonders for clearing away burnt glue. Gluepot with a 2-kilogram capacity and a 1.5-kW plate heater.
- Having a knurling roller with a 500-watt heating element ensures uniformity of glue on the panel edge.
Pressure Roller Group
- A pressure roller group consists of 6 pressure rollers. The first pressure roller diameter is 150 mm, and the remaining pressure roller diameters are 100 mm
- All 6 pressure rollers are pneumatically operated. Pressure can be adjustable by the pneumatic pressure knob. function of pneumatic cylinder operated by PLC.
- On the glue table, all pressure rollers are mounted 1 degree tilted to each other’s side. This ensures that the glue is evenly and firmly distributed in the center of the panel. It also prevents access overflow of glue on the panel surface.
End Cutting
- The unit is used to cut excess PVC from both ends of the panel. Equipped with high-frequency motors with a power of 0.75 kW and saw blades with a diameter of 150 mm.
- High reliability and precision as installed large linear guides. 2 saw blades, diam. 104 x 3.0 x 22 mm, T = 30.
- This process ensures a precise edge finish for a perfect finished look.
Rough Trimming
- Perform initial trimming of the top and bottom edges of the glued edge.
- Top and bottom flat trimming can be performed with this unit.
- suitable for acrylic edgebanding,
- Motors manually tiltable between 2 working positions: flush and radius trimming.
- All spindles equipped with encoder readouts for fast adjustment
- High-frequency spindle motor—0.75 kW x 2.
Fine Trimming
- Performs fine trimming of the top and bottom edges of the pvc edge.
- Comes with 2 highend frequency motors with suction hood and vertical Guide Plate.
- Motors manually tiltable between 2 working positions: Flat and radius trimming.
- Easy adjustments of trimming head as per thickness of pvc.
- High Frequency spindle motor – 0.55 kw x 2, 12000 RPM.
Corner Rounding
- corner rounding unit for front and rear edges for perfect corner trimming.
- This unit works in different profile in prosessed post forming machine like half nose, full nose, and duck nose.
- having a capacity of 50 mm panel.
- High Frequency spindle motor – 0.55 kw x 2, 12000 RPM.
- Workpiece length min – 150 mm, edgebanding thickness upto 0.4 mm to 3mm.
Glue Scraping Section
- The glue scraper helps remove excess adhesive from the joint surface of the panel and edgeband.
- Flat blade knife with copying plate and air cleaning function
- This process ensures that there is no glue on the panel or outside the application area.
- Work as a soft scrapper which gives fine finishing.
Buffing Roller
- Edge banding machine buff wheels are used to polish and buff the edges of the top/bottom wood panels to create a smooth and glossy finish.
- which makes them sturdier and lasts a longer.
- Finishing the edge looks dimensional and attractive with this process.
Grooving Section
- The built-in grooving function in machine makes it easy to make a groove on the board.
- One can use a maximum 9 mm grooving cutter.
- This function is PLC controlled, so it’s very easy to operate.
Heater Section
- This function is used to remove moisture from the edge of the panel.
- Help to get perfect bonding during edge banding.
Explore Our Most Selling Machines
Edge Taping Machine
Edge Bander
Panel Cutting Machine
Panel Saw
Laminate Processing Machine
Hydraulic Coldpress
Multiple Drilling machine
Multi Boring
CARVING MACHINE
Urex CNC Router
About Automatic Edge Bander Machine
Umaboy’s Automatic Edge Bander Machine offers unmatched precision and efficiency, expertly applying edge tape to panels with rapid processing and precise adhesion. This high-speed machine integrates advanced automation, ensuring consistent, high-quality finishes, and significantly boosting production throughput. Whether you need a reliable Automatic Edge Bander Machine Manufacturer and Supplier or want to Buy Automatic Edge Bander Machine for your woodworking projects, Umaboy provides the best in the industry.
The Automatic Edge Bander Machine feature and advancement
Features:
- Automated Application: Umaboy’s Automatic Edge Bander Machines automatically apply edge bands with high precision, reducing manual labor and ensuring consistent, high-quality results. This makes them the go-to choice for those looking to Buy Automatic Edge Bander Machine that offers superior performance.
- Adjustable Settings: Modern models from Umaboy allow for customizable edge banding thickness and adhesive application settings, making them versatile for handling various materials and edge profiles. This versatility is one of the reasons why Umaboy is a leading Automatic Edge Bander Machine manufacturer in India.
- Integrated Trimming: Built-in trimming tools cut excess edge banding for a flush, clean finish, minimizing additional processing steps.
- Digital Controls: Touchscreen interfaces and programmable settings enable easy operation and precise control over the banding process.
- High-Speed Operation: Designed for rapid processing, Umaboy’s Automatic Edge Bander Machines improve production efficiency by handling large volumes of panels quickly, ideal for those looking for Automatic Edge Bander Machinefor sale.
Advancements:
- Enhanced Automation: Advanced automation includes features like automatic feed systems and programmable cut sequences, optimizing workflow and reducing setup times. Advanced automation features in Umaboy’s machines, such as automatic feed systems and programmable cut sequences, optimize workflow and reduce setup times, making them a preferred choice among Wholesale Automatic Edge Bander Machine buyers.
- Improved Adhesive Technology: Innovations in adhesive systems provide stronger bonds and better edge finishes, suitable for various materials and environmental conditions.
- Increased Versatility: Modern machines can accommodate different edge materials, such as PVC, veneer, and laminate, and offer options for various edge profiles.
- Precision Engineering: Improved mechanical and electronic components enhance cutting accuracy and consistency, ensuring high-quality finishes across all panels. Enhanced mechanical and electronic components improve cutting accuracy and consistency, ensuring high-quality finishes across all panels, solidifying Umaboy’s reputation as a top Automatic Edge Bander Machine Manufacturer and Supplier.
- Integration Capabilities: Newer models can integrate with other production machinery, such as CNC routers and panel saws, creating a seamless and efficient manufacturing process.
