CANADIAN SUBSIDIARY

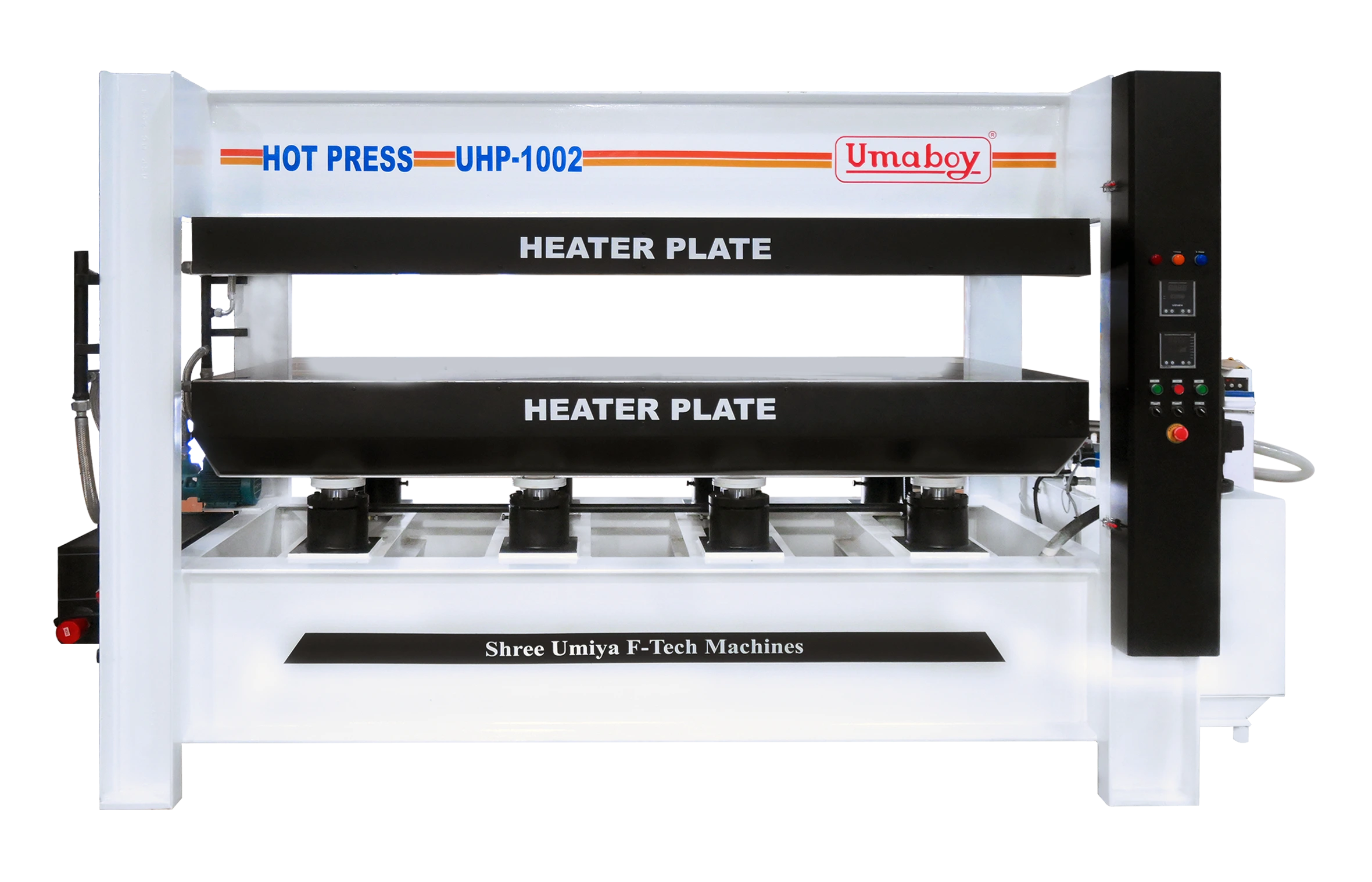

UHP 1002
6 cylinder

HYDRAULIC HOT PRESS MACHINE

DOWNLOAD PRODUCT INFO
WATCH PRODUCT VIDEO

PRODUCT INFORMATION DESCRIBED BELOW ↓

ACCURATE HYDRAULIC HOT PRESS

INDUSTRIAL HEAVY DUTY SOLUTION FOR FURNITURE FACTORY

This machine is suitable for pressing and laminating on fibre boards, decorative papers, plywood and other lamination sheets. Can be used for particle/MDF/HDF boards.

CONTROL PANEL

  • Having a control panel makes using the machine more comfortable for the user.
  • More efficient communication between the user and programming is made possible by the control panel’s display attachment.

PRESSURE PUMP

  • A high-powered pressure pump, designed with advanced technology and precision engineering, to provide a consistent and precise transfer of pressure with Consistent effectiveness and dependability.

SUSPENSION PISTON

  • The equipment is outfitted with a total of four high-power hydraulic cylinders, each strategically designed to deliver precise and consistent pressure performance for optimal functionality.

PLATTEN

  • The platten is made with MS metal to guarantee durability and longevity, resulting in superior construction quality.
  • The planomiller process is utilized on both top and bottom plattens to achieve a smooth finish and eliminate air bubbles when laminating.

Explore UHP 1002 - Hot Press

🔧 Watch how the UHP 1002 :
✔ Powerful Hydraulic System
✔ High-Temperature Efficiency
✔ Heavy-Duty Steel Construction
✔Energy-Efficient Operation

🎥 Click  to explore why the UHP 1002 is a game-changer in the hot press lamination process.

Watch Video

TECHNICAL SPECIFICATION

Hydraulic Hot Press UHP 1002 - 6 Cylinder

Technical Specifications

TECHNICAL SPECIFICATION
MODELUHP 1002 (Daylight 1)UHP 1002 (Daylight 2)UHP 1002 (Daylight 3)
Type of pressHydraulic pressHydraulic pressHydraulic press
Capacity120 Ton120 Ton120 Ton
Platen size (WxLxT)2540 x 1300 x 42 mm ± 1mm2540 x 1300 x 42 mm ± 1mm2540 x 1300 x 42 mm ± 1mm
Loading size2540 mm2540 mm2540 mm
No. of daylight010103
No. of heated plates020304
No. of cylinders/rams666
Cylinder bore/ram dia90 mm90 mm90 mm
Body structureFabricated structure bodyFabricated structure bodyFabricated structure body
Daylight gap150 mm150 mm150 mm
Stroke150 mm300 mm450 mm
Working pressure120 kgs120 kgs120 kgs
Hydraulic power pack5 HP5 HP7.5 HP
Specific platen pressure4kg/cm²4kg/cm²4kg/cm²
Heating mediaThermic oilThermic oilThermic oil
Pressure speed under max. pressure25 mm/min25 mm/min25 mm/min
Insulation between heated platen & the bolsterInsulation sheetInsulation sheetInsulation sheet
Bottom bedFabricatedFabricatedFabricated
Electric heating system9 kw x 3 nos. = 27 kw with 2.00 hp9 kw x 3 nos. = 27 kw with 3.00 hp9 kw x 3 nos. = 27 kw with 3.00 hp
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.

Explore Our Most Selling Machines

Edge Bander
Edge Taping Machine

Edge Bander

Panel Saw
Panel Cutting Machine

Panel Saw

Hydraulic Coldpress
Laminate Processing Machine

Hydraulic Coldpress

Multi Boring
Multiple Drilling machine

Multi Boring

Urex CNC Router
CARVING MACHINE

Urex CNC Router

Let's talk !

Please fill out this form and relax.
Our expert executive team will reach out to you and
Offer the most suitable advice according to your needs.

Please contact we would like to help you.​

Please enable JavaScript in your browser to complete this form.
REQUIREMENTS

About Hydraulic Hotpress Machine UHP 1002

UMABOY’s Hydraulic Hotpress Machine delivers precision and power, effortlessly fusing materials with consistent heat and pressure. Engineered for reliability, it ensures uniform results with minimal maintenance. Ideal for various applications, it enhances productivity in manufacturing processes. Built with durability in mind, it promises long-lasting performance and efficiency.

The Hydraulic Hotpress Machine UHP 1002 feature and advancement

  • Features:

    1. Hydraulic Pressure System: Uses hydraulic Pressure to apply uniform pressure, ensuring consistent bonding across large panels or
      multiple layers of material.

    2. Temperature Control: Equipped with precise temperature control systems to regulate heat, essential for optimal adhesive curing and material bonding.

    3. Programmable Controls: Features digital controls and programmable settings for adjusting pressure, temperature, and pressing time, enhancing ease of use and flexibility.

    4. Large Capacity: Designed to handle large panels and multiple workpieces simultaneously, making it suitable for high-volume production.

    5. Robust Construction: Built with durable materials and components to withstand the stresses of high-pressure and high-temperature operations, ensuring long-term reliability.

    Advancements :

    1. Energy Efficiency: Newer models are designed to be more energy-efficient, incorporating insulation and improved heating elements to reduce operational costs and environmental impact.

    2. Digital Integration: Advanced digital interfaces and integration with production management systems streamline operations and provide real-time monitoring and diagnostics.

    3. Safety Enhancements: Upgraded safety features, such as automatic pressure relief and emergency stop functions, ensure safer operation and protect both the machine and operators.

    4. Advanced Temperature Regulation: Improvements in heating technology offer more accurate and consistent temperature control, optimizing adhesive performance and material bonding.
