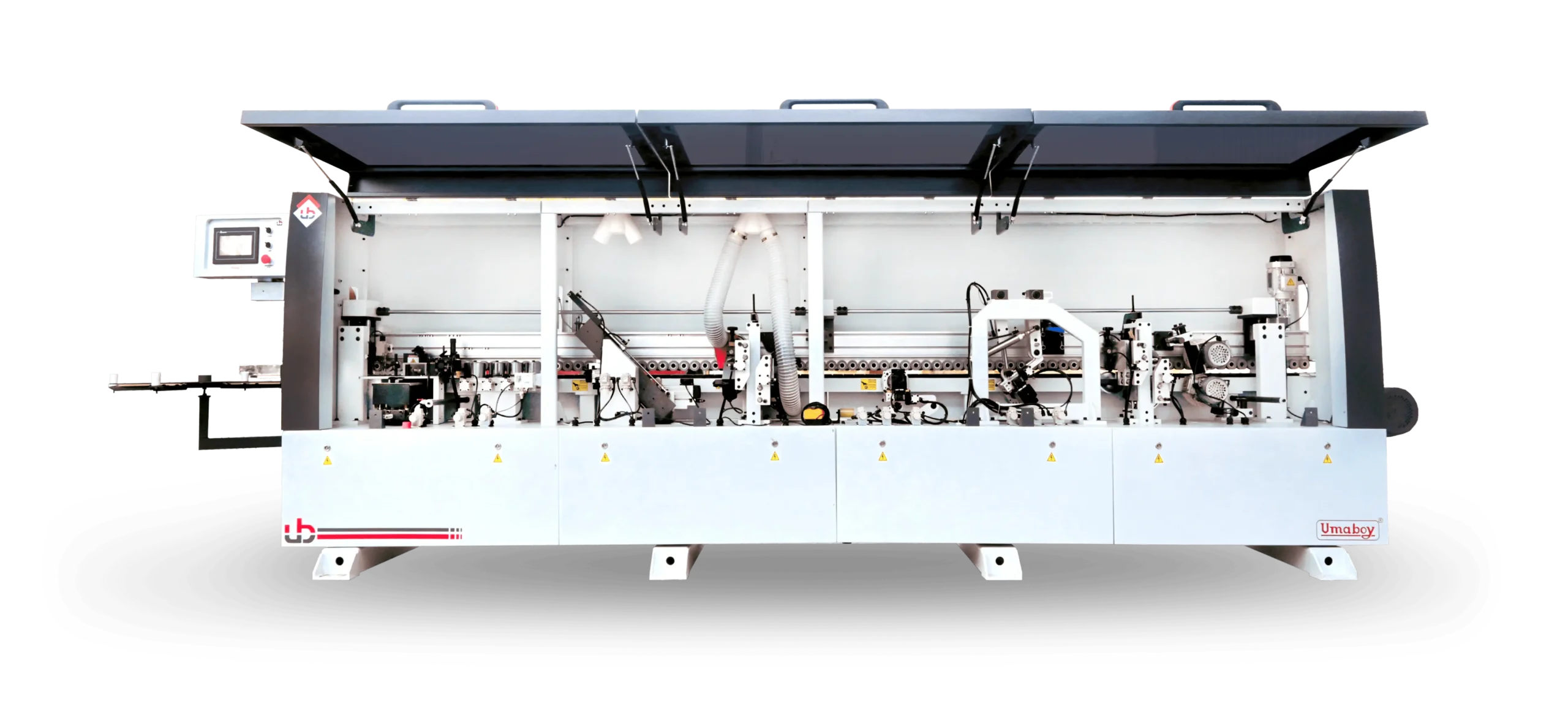

UEB 310C
AUTOMATIC EDGEBANDING MACHINE
WATCH PRODUCT VIDEO
PRODUCT INFORMATION DESCRIBED BELOW ↓
SEAMLESS EDGEBANDING MACHINE
SMART SOLUTION FOR ENHANCE QUALITY
The machine can be performing with many different Edgebands such as PVC, ABS, veneer and acrylic On different types of boards such as plywood, chipboard, MDF/HDF..
GLUE UNIT
- Apply the hot melt glue on the panel, Pneumatic cutting of pvc edge banding as per the length of panel, gluing on entire surface of panel height.
- Teflon coated gluepot to prevent wastage of glue. It works wonders for clearing away burnt glue. Gluepot with a 2 kilogram capacity and a 1.5 kw plate heating.
- Having a nurling roller with a 500 watt heating element ensures uniformity of glue on panel edge.
- The high quality superior wiper controlled the flow of glue.
- These features are specially designed to ensure a consistently precise finish and superior quality and to avoid any poor quality and Inconsistency of glue.
PRESSURE ROLLER GROUP
- A pressure roller group consists of 4 pressure rollers. The first pressure roller diameter is 150 mm and the remaining pressure roller diameters are 100 mm.
- all 4 pressure roller pneumatically operated. pressure can be adhustable by pnumatic pressure nobe. function of pneumatic cylinder operated by PLC
- The pressure rollers apply sufficient force to the panel to ensure that the glue adheres correctly and in the desired amount.
- It offers incredible results with a smooth finish and a long-lasting edge attached to the panel.
END CUTTING
- Unit used to cut excess pvc from both the end of panel. Equipped with high frequency motors with a power of 0.55 kW and 12,000 rpm and saw blades with a diameter of 150 mm.
- High reliability and precision as Installed large linear guides. 2 saw blades diam. 104 x 3.0 x 22 mm, T = 30.
- This process ensures a precise edge finish for a perfect finished look.
FINE TOP/BOTTOM TRIMMING
- Performs fine trimming of the top and bottom edges of the pvc edge.
- Comes with 2 highend frequency motors with suction hood and vertical Guide Plate.
- Motors manually tiltable between 2 working positions: Flat and radius trimming.
- Easy adjustments of trimming head as per thickness of pvc.
- High Frequency spindle motor – 0.55 kw x 2, 12000 RPM.
CORNER ROUNDING
- corner rounding unit for front and rear edges for perfect corner trimming.
- This unit works in different profile in prosessed post forming machine like half nose, full nose, and duck nose.
- having a capacity of 50 mm panel.
- High Frequency spindle motor – 0.55 kw x 2, 12000 RPM.
- Workpiece length min – 150 mm, edgebanding thickness upto 0.4 mm to 3mm.
- Thanks to it’s movement of circulating over the edge of panel with the help of linear guide ways and pneumatic cylinder gives the best result in the corner of panel.
PVC SCRAPPING UNIT
- PVC Scrapping to remove excess pvc from top and bottom edge.
- Comes with standard profile of 2 mm.
- It provides better edge, consistency, precision and smoothness..
- Includes 2 R-profile blades with suction hood and front and vertical guide plate..
LIQUID SPRAYING UNIT
- Spraying anti adhesive liquid on panel before buffing unit give the clean finished surface.
- Equipped with PLC controlled pneumatic flow.
- This process cleans the entire treated area to make it look rich and well-groomed..
BUFFING UNIT
- Edge banding machine buff wheels are used to polish and buff the edges of the top/bottom wood panels to create a smooth and glossy finish.
- Finishing the edge looks dimensional and attractive with this process.
TECHNICAL SPECIFICATION
High Speed Auto Edge Bander UEB-310 C
Heavy Duty Machine For Large Scale Production
Applications
The Auto Edge Bander UEB-310C is designed to provide maximum output with minimum investment, making it ideal for workshops, factories, and large-scale production environments. This machine guarantees absolute quality, flexibility, and productivity, offering an ergonomic structure with the fastest and easiest system to use. Perfect for edge banding applications involving PVC, lining melamine, and ABS with thicknesses ranging from 0.4 mm to 3 mm, the High Speed Auto Edge Bander UEB-310C delivers outstanding results for a wide range of materials.
Salient Features
- High and machining performance High-speed processing with user-friendly and trouble-free operation
- Smart Touch PLC System integrated with encoder controlled every function of the machines, which gives accurate functioning.
- Motorized up-down of conveyor belt
- Teflon-coated glue pot easy for cleaning, 2.5 kg capacity of EVA glue
- Safety air tank for constant supply of air to machine
Technical Specifications
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Explore Our Most Selling Machines
Edge Bander
Panel Saw
Hydraulic Coldpress
Multi Boring
Urex CNC Router
About Auto Banding Machine UEB 310C
The Auto Edge Bander UEB-310C is designed to provide maximum output with minimum investment, making it ideal for workshops, factories, and large-scale production environments. This machine guarantees absolute quality, flexibility, and productivity, offering an ergonomic structure with the fastest and easiest system to use. Perfect for edge banding applications involving PVC, lining melamine, and ABS with thicknesses ranging from 0.4 mm to 3 mm, the High Speed Auto Edge Bander UEB-310C delivers outstanding results for a wide range of materials.
Advancements of Modern Edgebanding UEB 310C Machine.
Features:
The UEB-310C Machine is specifically designed to cater to both corporate and home furnishing manufacturing processes. Its versatile functionality and robust design make it suitable for a range of applications in both commercial and residential settings.
Add On Feature : The UEB-310C Edge Bander Machine includes an added feature compared to its Lower Model is : corner rounding. This enhancement provides precise corner trimming, ensuring that edges are smoothly rounded for a professional finish. This feature is especially beneficial for achieving clean, rounded corners on panels, which enhances both the aesthetic quality and functionality of the finished product.
With the addition of corner rounding, the UEB-310C offers greater versatility and refinement in edge banding, making it an even more effective solution for both corporate and home furnishing manufacturing processes.
- Precision Edge Banding: Ensures high-quality finishes for various types of furniture and cabinetry.
- Versatility: Adapts to different panel sizes and materials, making it ideal for diverse production needs.
- Efficiency: Streamlines operations, enhancing productivity for both large-scale corporate projects and smaller home furnishing tasks.
This machine is built to meet the demands of different production environments, offering reliability and performance for achieving professional results in both corporate and home furnishing manufacturing.
