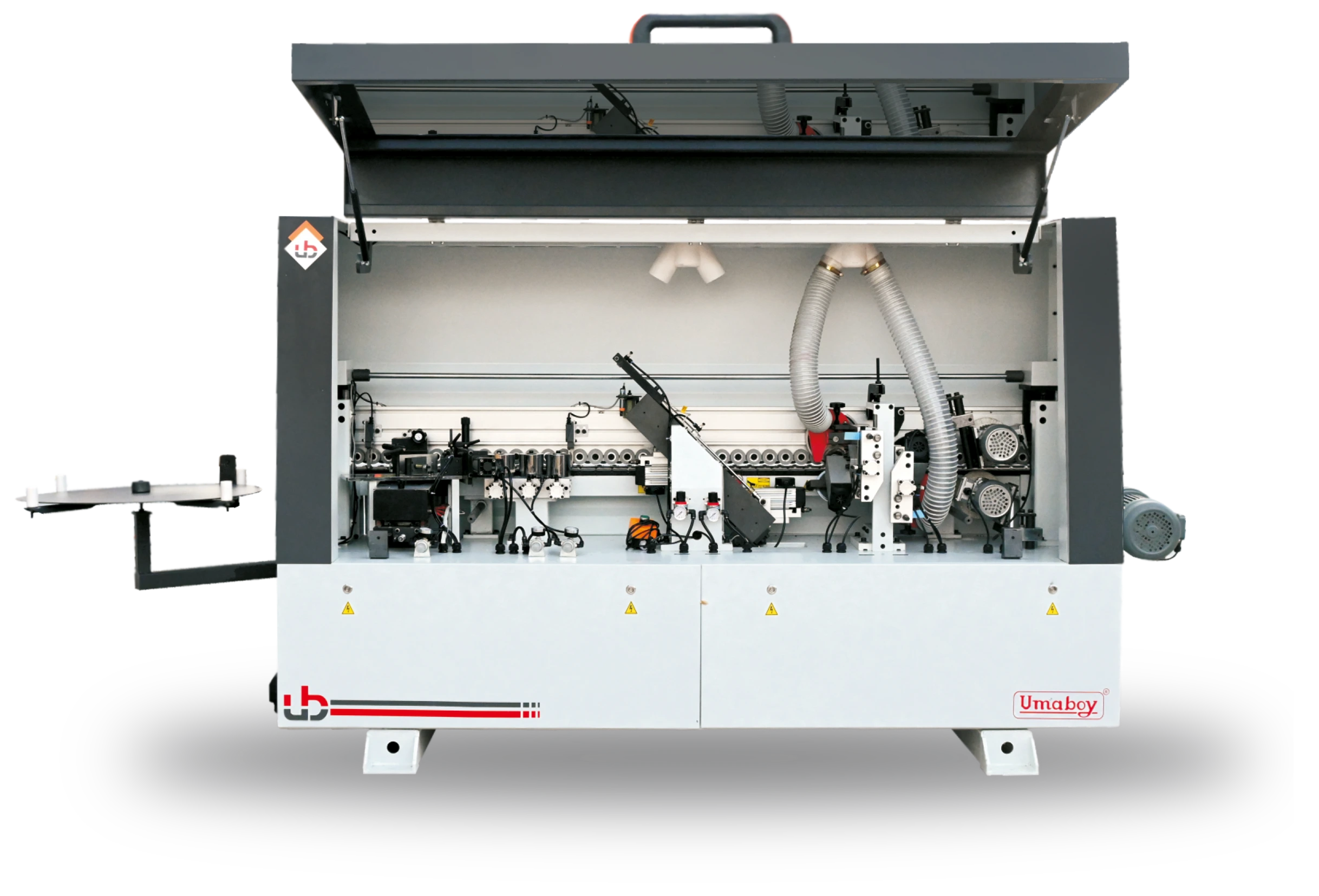

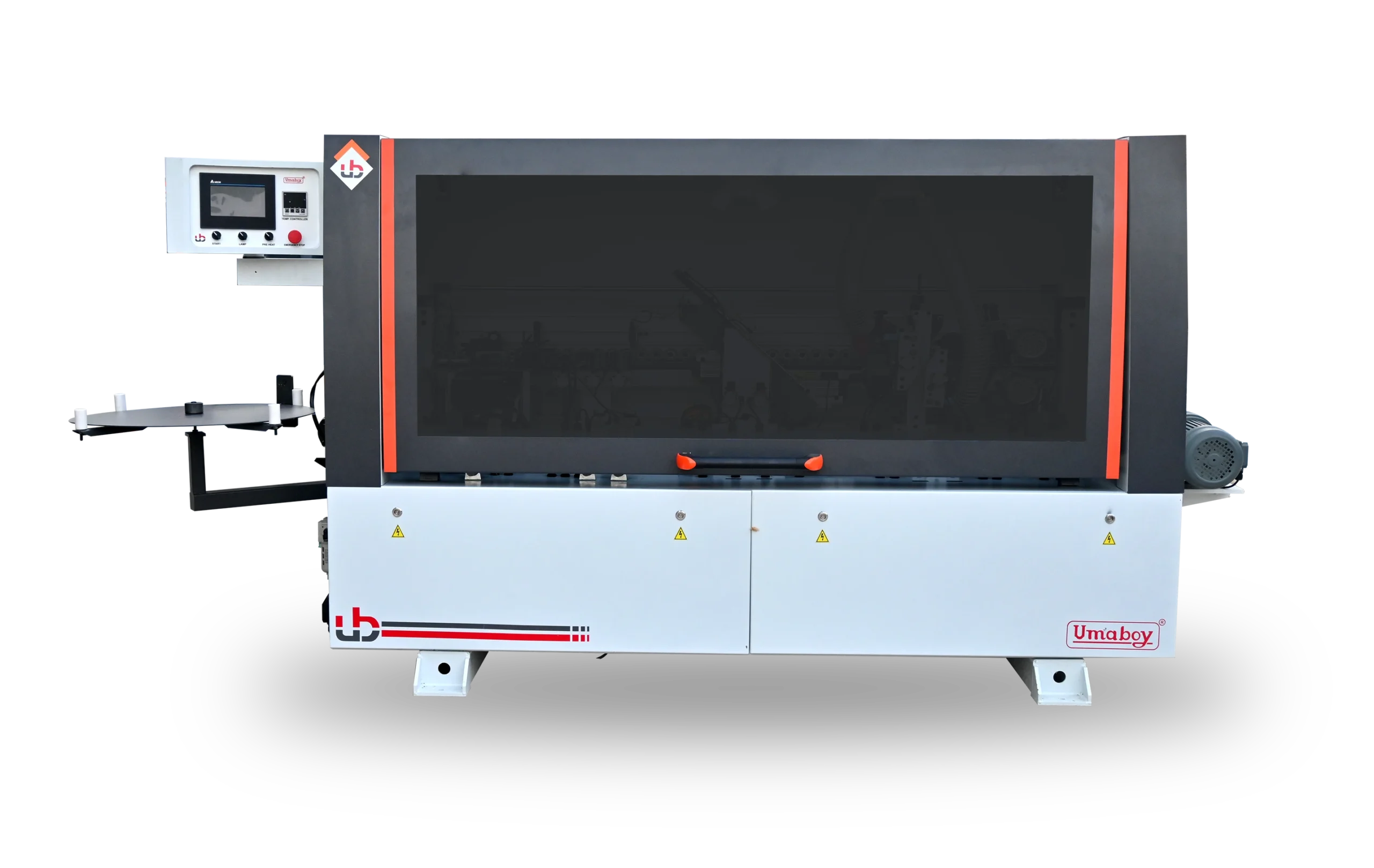

UEB 240 S
AUTOMATIC EDGEBANDING MACHINE
WATCH PRODUCT VIDEO
PRODUCT INFORMATION DESCRIBED BELOW ↓
ENTRY LEVEL EDGEBANDING MACHINE
SMART SOLUTION FOR ENHANCE QUALITY
The machine can be performing with many different Edgebands such as PVC, ABS, veneer and acrylic On different types of boards such as plywood, chipboard, MDF/HDF..
GLUE UNIT
- Apply the hot melt glue on the panel, Pneumatic cutting of pvc edge banding as per the length of panel, gluing on entire surface of panel height.
- Teflon coated gluepot to prevent wastage of glue. It works wonders for clearing away burnt glue. Gluepot with a 2 kilogram capacity and a 1.5 kw plate heating.
- Having a nurling roller with a 500 watt heating element ensures uniformity of glue on panel edge.
- The high quality superior wiper controlled the flow of glue.
- These features are specially designed to ensure a consistently precise finish and superior quality and to avoid any poor quality and Inconsistency of glue.
PRESSURE ROLLER GROUP
- A pressure roller group consists of 3 pressure rollers. The first pressure roller diameter is 150 mm and the remaining pressure roller diameters are 100 mm.
- all 3 pressure roller pneumatically operated. pressure can be adhustable by pnumatic pressure nobe. function of pneumatic cylinder operated by PLC
- The pressure rollers apply sufficient force to the panel to ensure that the glue adheres correctly and in the desired amount.
- It offers incredible results with a smooth finish and a long-lasting edge attached to the panel.

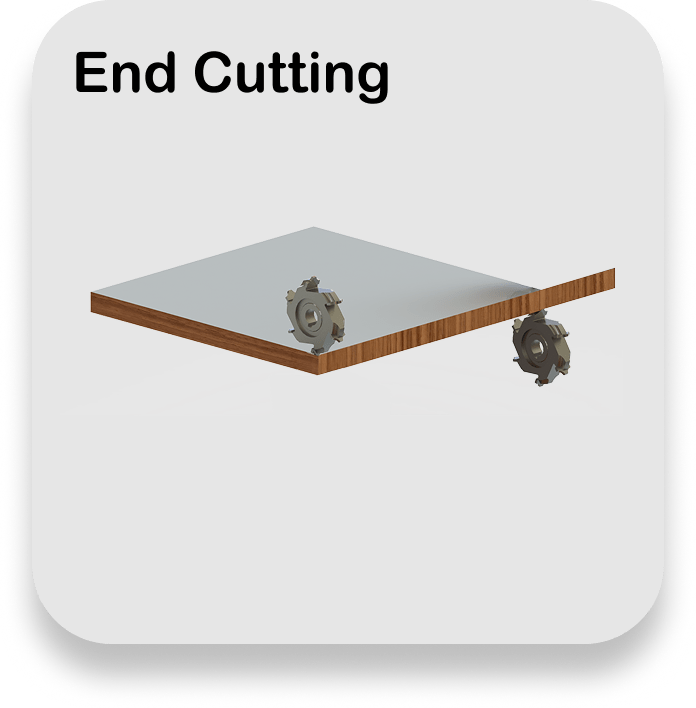

END CUTTING
- Unit used to cut excess pvc from both the end of panel. Equipped with high frequency motors with a power of 0.55 kW and 12,000 rpm and saw blades with a diameter of 150 mm.
- High reliability and precision as Installed large linear guides. 2 saw blades diam. 104 x 3.0 x 22 mm, T = 30.
- This process ensures a precise edge finish for a perfect finished look.
FINE TOP/BOTTOM TRIMMING
- Performs fine trimming of the top and bottom edges of the pvc edge.
- Comes with 2 highend frequency motors with suction hood and vertical Guide Plate.
- Motors manually tiltable between 2 working positions: Flat and radius trimming.
- Easy adjustments of trimming head as per thickness of pvc.
- High Frequency spindle motor – 0.55 kw x 2, 12000 RPM.
PVC SCRAPPING UNIT
- PVC Scrapping to remove excess pvc from top and bottom edge.
- Comes with standard profile of 2 mm.
- It provides better edge, consistency, precision and smoothness..
- Includes 2 R-profile blades with suction hood and front and vertical guide plate..

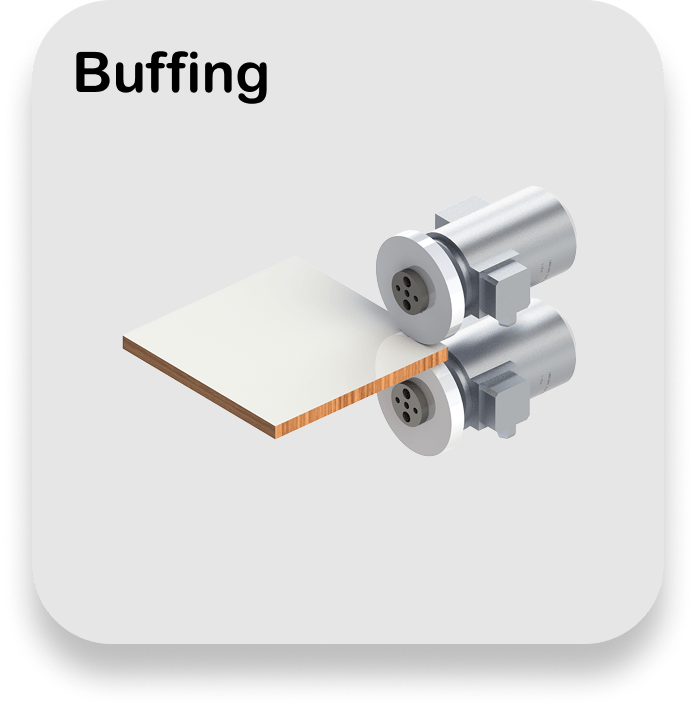

BUFFING UNIT
- Edge banding machine buff wheels are used to polish and buff the edges of the top/bottom wood panels to create a smooth and glossy finish.
- Finishing the edge looks dimensional and attractive with this process.
TECHNICAL SPECIFICATION
High Speed Auto Edge Bander UEB-240S
The UEB-240S Edge Bander Machine is UMABOY’s entry-level machine into the automated edge banding process. This machine is designed to streamline and enhance the edge banding of panels with efficiency and precision. As part of UMABOY’s initial range of edge banding solutions, the UEB-240S offers features that cater to both accuracy and ease of use, making it a valuable addition for high-quality finishing in woodworking and cabinetry projects.
Technical Specifications
Note: Technical specifications may be changed without any prior notice. Product images are just for the reference.
Explore Our Most Selling Machines
Edge Bander
Panel Saw
Hydraulic Coldpress
Multi Boring
Urex CNC Router
About Auto Edge Banding Machine UEB 240S
The UEB-240S Edge Bander Machine is UMABOY’s entry level Machine into the automated edge banding process. This machine is designed to streamline and enhance the edge banding of panels with efficiency and precision. As part of UMABOY’s initial range of edge banding solutions, the UEB-240S offers features that cater to both accuracy and ease of use, making it a valuable addition for high-quality finishing in woodworking and cabinetry projects.
Key Features and Advancements of the Auto Edge Bander UEB 240S
-
Features:
- Ideal for Small Production : The UEB-240S Edge Bander Machine is specifically designed for small production units. Its compact size and efficient automation make it ideal for smaller-scale operations where space and budget may be limited. Despite its size, the UEB-240S delivers reliable performance and precision, ensuring high-quality edge banding for smaller production runs. This makes it a practical choice for workshops and businesses that need effective edge banding solutions without the need for larger, more complex machinery.
- Perfect Choice to Move From Manual Process :
The UEB-240S Edge Bander Machine is the perfect choice for transitioning from manual edge banding processes to automated operations. It streamlines the edge banding workflow, improving consistency and efficiency while reducing the labor and time required compared to manual methods. With its user-friendly features and reliable performance, the UEB-240S offers a seamless upgrade, enhancing productivity and ensuring a professional finish in small production environments. - Automatic Features :
The UEB-240S Edge Bander Machine includes several automatic features that enhance its functionality and efficiency:
Gluing Unit: Automatically applies adhesive to the edges of the panels, ensuring a strong bond between the edge band and the panel surface.
Pressure Roller: Applies consistent pressure to the edge band, ensuring it adheres firmly and evenly to the panel.
End Cutting: Precisely trims the ends of the edge banding for a clean, finished look.
Fine Top and Bottom Trimming: Refines the top and bottom edges of the banding to achieve a smooth, flush finish with the panel surface.
PVC Scraping Unit: Removes excess PVC from the edges to ensure a clean, professional appearance.
Buffing Unit: Polishes the edges to achieve a smooth, glossy finish and enhance the overall appearance of the banded panels.
- Ideal for Small Production : The UEB-240S Edge Bander Machine is specifically designed for small production units. Its compact size and efficient automation make it ideal for smaller-scale operations where space and budget may be limited. Despite its size, the UEB-240S delivers reliable performance and precision, ensuring high-quality edge banding for smaller production runs. This makes it a practical choice for workshops and businesses that need effective edge banding solutions without the need for larger, more complex machinery.
